Advancing concentration measurement: A novel approach utilising refractometry for acids and bases

Jun 18 2024

Author: Dr Frank Gottsleben and Sven Boetcher on behalf of Anton Paar OptoTec GmbH

Free to read

Articles are free to download. Unlock the article to be shown more content, graphs and images.

This article introduces a novel approach for measuring the concentration of acids and bases using refractometry: an alternative to traditional titration methods. This technique offers significant advantages in terms of speed, ease of use, and resource efficiency, making it an appealing option for routine laboratory analyses. With expert insights from Anton Paar, this section of the paper focuses on the traditional titration methods, outlining their principles, applications, and inherent challenges.

Introduction

In chemical laboratories, the measurement of acid and base concentrations is a fundamentally important task that is traditionally accomplished through titration. This process is often resource- and time-intensive. The application of refractometry as a measurement technique for the concentration measurement of acids and bases promises to revolutionise this routine task by offering a faster and less labour-intensive alternative. This paper will compare traditional titration methods with refractometry, exploring the potential of the latter to improve efficiency and accuracy in chemical analyses, and what the Abbemat refractometer brings to the table.

Traditional titration methods

Titration is a cornerstone of analytical chemistry used to determine the concentration of a known reactant in a solution. Through this method, a reagent (titrant) of known concentration is carefully added to a solution containing the analyte until a reaction endpoint is reached, typically indicated by a color change or pH shift.

Principles of titration

The principle behind titration is straightforward: It involves the quantitative addition of a titrant to an analyte until the end of a neutralisation reaction, which can be observed via a physical change in the solution. This change is often detected by an indicator specifically chosen to respond at the endpoint of the reaction. The amount of titrant used provides a direct measurement of the analyte’s concentration based on the stoichiometry of the reaction.

Types of titration

Titration methods vary primarily in the type of reaction central to the analysis:
• Acid-base titrations: Determine the concentration of acids or bases using a pH indicator or a pH meter to detect the equivalence point.
• Redox titrations: Introduction of an oxidation-reduction reaction between the analyte and the titrant, often using an indicator that changes colour at the endpoint.
• Complexometric titrations: Used for identifying the concentration of metal ions in solutions through the formation of a complex ion, usually indicated by a colour change with a chelating agent.

Challenges with titration

Despite its ubiquity, titration comes with several challenges:
• Precision requirements: The accuracy of titration depends heavily on the precise measurement of the volume and concentration of the titrant.
• Time and resource consumption: Each titration requires a lot of time for setting up and calibrating equipment, as well as post-analysis cleanup.
• Temperature sensitivity: The reaction can be temperature-dependent, necessitating strict control of laboratory conditions or corrections based on temperature.
• Skill dependency: The accuracy of titration often depends on the operator’s skill in recognising the endpoint and managing the titration process.

Technological and methodological limitations

Further complicating titration are technological and methodological constraints:
• Equipment maintenance and calibration: Regular inspection and calibration of titration equipment, such as burettes and pH meters, are essential for accurate measurements.
• Chemical waste: Titration can generate considerable chemical waste as each test requires new reagents and often involves multiple trials for accuracy.
This section of the paper has provided a comprehensive overview of traditional titration methods, setting the stage for discussing the advantages and implementation of refractometry as a modern alternative. By comparing these methodologies, this paper aims to demonstrate the potential of an Abbemat refractometer from Anton Paar as an interesting alternative for concentration measurement in chemical laboratories.

Introduction to refractometry

As a well-established technique in laboratory analytics, refractometry offers a promising alternative to traditional titration methods. This method involves measuring the refractive index of a solution, which changes in accordance with the concentration of dissolved substances. This section delves into the principles of refractometry, its operational methodology, and the advantages it offers over traditional titration.

Principles of refractometry

The refractive index of a substance is a fundamental optical property that indicates how much light bends or refracts as it passes through the substance. In the context of concentration measurement, the refractive index varies with changes in the concentration of a solution. By measuring this refractive index, refractometers like Abbemat provide a quick and direct assessment of solute concentration without the need for extensive sample preparation or chemical reagents.

Refractometer design and functionality

Refractometers are designed to be both user-friendly and precise. The basic components include a light source, a prism where the sample is placed, and a detector that measures the angle of refracted light. Modern digital refractometers display the refractive index instantly, translating it through built-in algorithms into concentration values that can be easily read and recorded.

Advantages of using refractometers

Refractometry offers several advantages over traditional titration:
• Speed and efficiency: Measurements are almost instantaneous, typically taking only a few seconds.
• Minimal sample volume: Only a small drop of the sample is needed, reducing waste and the need for large quantities of analyte.
• Non-destructive testing: The sample can be recovered after testing, which is particularly beneficial when dealing with expensive or hazardous materials.
• Ease of use: The operation of refractometers is straightforward, requiring minimal training compared to the skill needed for accurate titration.

Refractometry in practical application

The practical application of refractometry extends across various industries, reflecting its adaptability and efficiency. This section provides a closer look at how refractometry is used in real-world scenarios, highlighting its impact on improving laboratory workflows and reducing operational costs.

Industrial applications

Industries that have adopted refractometry include:
• Pharmaceuticals: for purity checks and quality control of raw materials and finished products.
• Food and beverage: in the measurement of sugar content in beverages and syrups, and for the control of solute concentrations in various food products.
• Chemicals: for monitoring the concentration of acids, bases, and other chemicals during the manufacturing processes.

Comparison with titration

In direct comparison to titration, refractometry often shows a marked improvement in efficiency. For example, in a typical quality control laboratory in the chemical industry, refractometry can reduce the time required for concentration measurement by over 75% compared to titration. Additionally, the reduction in chemical waste and the need for less stringent environmental controls further enhances its inherent value.

Adoption in a chemical laboratory

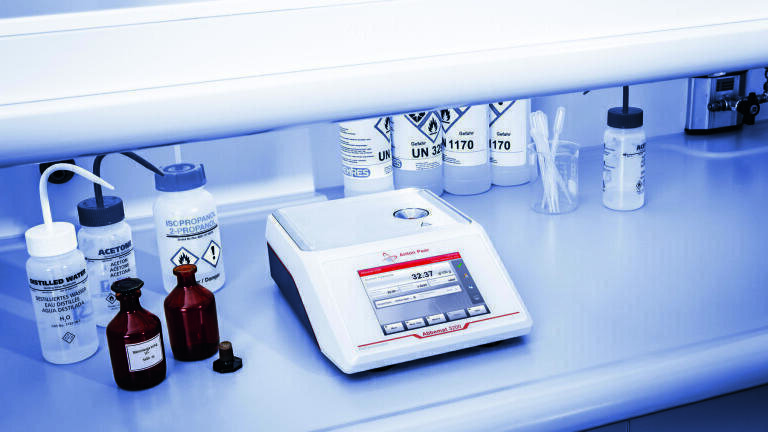

Switching from titration to an Abbemat refractometer for the concentration measurement of acids and bases can decrease the analysis time from minutes to just 30 seconds per sample, significantly boosting productivity and reducing costs associated with chemical reagents and waste management.

Limitations of refractometry

Despite its numerous benefits, refractometry is not without its limitations. The technique is generally suitable only for binary solutions and may not be applicable to more complex solutions without prior separation of components, because a refractometer cannot selectively measure one single component in a multicomponent mixture. It always measures the whole sample.

Advancing refractometry technology

As refractometry continues to evolve, ongoing advancements in technology at Anton Paar are addressing its limitations and expanding its applications. The development of more sophisticated calibration methods and the integration of advanced sensors are improving the accuracy and versatility of refractometers, making them increasingly viable for a broader range of analytical tasks.

Comparative analysis of refractometry and titration

This section provides a detailed comparative analysis between refractometry and titration, focusing on efficiency, accuracy, and cost-effectiveness. The aim is to highlight the measurable benefits of refractometry when integrated into laboratory practices traditionally dominated by titration methods.

Efficiency comparison

Efficiency in laboratory operations is paramount, affecting throughput, cost, and overall workflow. A direct comparison between refractometry and titration reveals significant differences:
• Time: As previously noted, refractometers like the Abbemat can deliver results in seconds, whereas titration typically requires minutes to complete. This drastic reduction in time per test can lead to increased laboratory throughput and reduced queue times for results.
• Sample handling: Titration often requires extensive preparation including precise measurement and mixing, while refractometry typically requires just a drop of the sample, reducing the potential for human error and sample contamination.

Accuracy and precision

Refractometry offers a competitive level of precision for specific applications. The key to refractometry’s accuracy lies in the quality of the refractometer and its calibration:
• Calibration: Regular calibration with certified standards ensures that refractometry measurements maintain high accuracy. The development of automated calibration routines further enhances this accuracy.
• Temperature: Refractometry measurements are temperature dependent, which is why modern refractometers have an automatic built-in temperature control that works very quickly. During titration, changes in ambient temperature directly affect accuracy due to the lack of appropriate temperature control.

Cost implications

Cost-effectiveness is another critical factor in method selection:
• Equipment and maintenance: While the initial investment in a high-quality refractometer might be a bit higher than a simple titration setup, the long-term savings in reagents, maintenance, and waste disposal can be substantial.
• Operational costs: Refractometry requires fewer consumables and generates less waste, offering significant savings in laboratories where high sample volumes are processed. Additionally, the analysing speed of a refractometer reduces the labour cost in the laboratory significantly, meaning a refractometer pays for itself within a short period of time.

Integration of refractometers into existing laboratory protocols

Integrating refractometers into existing laboratory protocols requires consideration of both technical and operational adjustments. This section discusses strategies for successful integration and ongoing use of refractometry in the existing laboratory.

Training and adoption

Successful adoption of new technology depends heavily on user acceptance and proper training:
• Training programs: Refractometers are easy to operate and almost self-explaining. However, a comprehensive training for laboratory personnel on using refractometers ensures accurate and reliable measurements.
• Ease of adoption: Due to its straightforward operation, refractometry can be quickly learned and integrated into daily laboratory routines, minimising disruption.

Standardisation and compliance

Ensuring that refractometry meets industry standards and compliance requirements is essential:
• Standardisation: Developing standardised procedures for refractometry in various applications ensures consistency and reliability across measurements.
• Regulatory compliance: Adapting refractometry protocols to meet regulatory standards is vital, particularly in industries like pharmaceuticals where compliance with stringent guidelines is mandatory.

Technological integration

Incorporating refractometry with other Anton Paar laboratory technologies enhances both functionality and data management:
• Data integration: Connecting refractometry equipment to laboratory information management systems (LIMS) allows for seamless data recording and analysis.
• Multiparameter measurements: The potential for multiparameter measurements by combining the refractometer with other measuring technologies, e.g. the DMA density meter, the SVM viscosity meter or the MCP polarimeter, provides many opportunities to measure all parameters within one step. This can be combined with automatic sample handling, further increasing efficiency.

Limitations and challenges of refractometry

While refractometry presents many advantages, recognising its limitations is crucial, especially when integrating it into diverse laboratory settings.

Specificity limitations

Binary solutions: Refractometry is ideal for pure chemicals or binary solutions because it does not measure one component selectively within a multi-component mixture. Therefore, a concentration measurement in multi-component mixtures would not be possible without further processing.

Applications

Chemical and pharmaceutical industry: In chemical and pharmaceutical companies a significant efficiency improvement in quality control is possible by adopting a refractometer, reducing both testing time and chemical usage.
Beverage industry: In the beverage sector, refractometers are typically used for the quality control of the incoming raw material, but also for the measurement of juice concentrate and the final bottled juice.
Food industry: As the sample doesn’t need to be liquid, a refractometer can be used for the quality control of highly viscous or solid samples. Even if it cannot be used for concentration measurement of one particular component in a multicomponent mixture, a refractometer can speed up the quality check of mixtures, such as marmalade or ketchup, by measuring the refractive index of the whole mixture.

Conclusion

Abbemat refractometers from Anton Paar offer a great alternative to traditional titration, promising speed, efficiency, and cost-effectiveness. They suit modern laboratories well, especially those requiring rapid turnaround and minimal sample handling. Despite limitations with complex mixtures, the technology is an excellent alternative for the measurement of acid and base concentrations and can be used for other applications, such as quality control in the laboratory.
