• Reduce Process costs with the NEW Huber Unistat® 905w from Labtex

Laboratory Products

Reduce Process costs with the NEW Huber Unistat® 905w from Labtex

Sep 08 2010

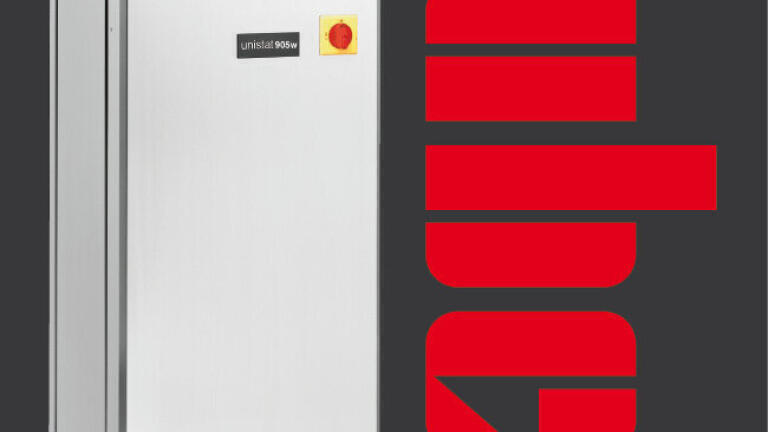

The NEW Unistat 905w is the latest addition to the Unistat® range of high performance circulators from Huber. With 6kW heating power, cooling powers from 4,5kW @ 0°C and 0,7kW @ -80°C and a temperature range of -90 to 250°C the new Unistat® 905w brings a tailored cryogenic solution to lower volume reactors.

Introduced to the market in 1991, and with a temperature range from -120 to +425°C, the Unistats® were designed for demanding temperature control applications where reliability, predictability and tight control are a necessity in a constantly changing reaction mass. Critical process temperatures can be maintained through mixing, ingredient addition, exothermic and endothermic reactions. This level of temperature control can lead to increased yields, lower resource consumption and lower running costs, making the Unistats® a more efficient and profitable alternative to other temperature control methods.

Designed to give the highest possible flow rates, the new Unistat® 905w features an efficient variable-speed pump with soft start. This enables the safest and fastest ramp rates resulting in tighter control of process temperature while protecting your reactor and maximising process efficiencies. The pressure of the thermal fluid is closely controlled and monitored by an adaptive controller that brings a new level of precision to thermal control that can be delivered to a wide variety of applications.

A hydraulically sealed circulation thermostat, the Unistat® 905w allows fluids to be used safely above flash points without the fear of ignition and associated greasy residue that comes from oil vapours. In addition, because the fluids are not exposed to the atmosphere whilst being heated and cooled, they do not degrade dramatically extending their lifetime by years.
Consistent with the entire Unistat® range, the Unistat 905w features the Unistat® pilot. An easy to use touch screen controller, with simple to access menus displaying all the key parameters, including, process temperature, jacket temperature, fluid pressure and safety settings. The Unistat pilot allows users to view dynamic data in a real-time graphic format.
All units are CFC and H-CFC free and have the option for 100% natural refrigerants. Manufactured from stainless steel each model in the Unistat® range is built to operate trouble-free for many years.

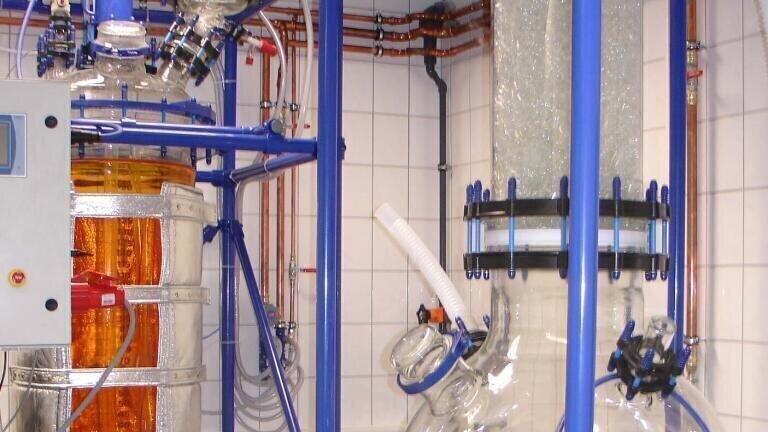

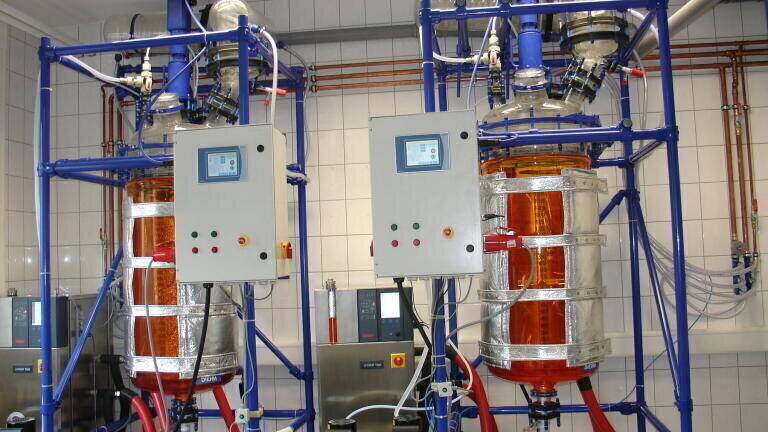

Labtex offers plain and jacketed glass reaction with capacities up to 150 litres with up to DN450 technical Flanges. Plain and jacketed vessels in either flat or round bottom designs are offered with a comprehensive range of accessories.

Reactors are supplied with graduations as standard and zero dead space bottom outlet valves can be specified from a number of different designs and materials. Bottom valves are available for pneumatic operation and with integral Pt100 if required.

Labtex provides a wide range of accessories in glass, stainless steel, PTFE and other materials and, in addition to standard products, Labtex welcomes enquiries for bespoke manufacturing to customer designs and specifications. Labtex provides complete systems including automation, temperature control, stirring and vacuum using many leading brands etc.

For further details contact Labtex on 01484 600200 or greg@labtex.co.uk
