Determination of Organics in Soils, Sediment and Fossil Fuels

Jun 19 2015

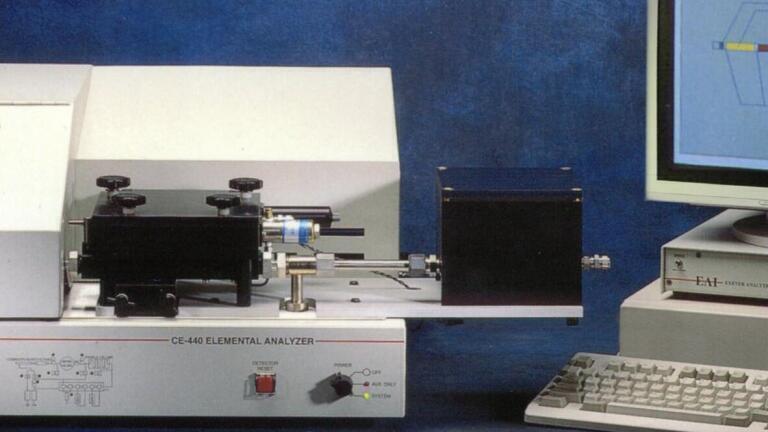

The Model 440 CHN Analyser from Exeter Analytical Inc has been shown to provide precise determination of the organic content in geological samples including soils, sediment and fossil fuels.

Determination of the hydrocarbon content of geological samples such as coal, peat and oil bearing rocks is a critical determinant of the value of the sample as a fuel material.  Analysing the percentage Carbon, Hydrogen and Nitrogen (CHN) content of soil samples is of major interest to agronomists as the organic matter is known to directly influence the productive capacity of different soil types. Likewise determining the level of Carbon and Nitrogen in marine sediment is of great importance as the organic matter is known to have a direct effect on the health of the aquatic ecosystem.

The Exeter Analytical Model 440 provides complete control over combustion parameters. It is able to reproducibly achieve 100% combustion with the widest range of geological sample types. Though incorporation of extensive automation in the Model 440 and intuitive software – the percentage Carbon (C), Hydrogen (H) and Nitrogen (N) in geological samples can be determined in as little as 5 minutes.

In addition to organic content, geological samples typically also contain inorganic matter which is left as a residue after each CHN determination. The Exeter Analytical Model 440 is a static combustion CHN Elemental Analyser, with a unique horizontal furnace design, which enables easy removal of sample residue between each geological analysis.  Consequently one combustion tube will analyse in excess of 1000 geological samples without the need for removal and cleaning. By comparison other elemental analysers, employing vertical furnace designs, will require cleaning after as little as 20 samples. Because the Model 440 is able to effectively eliminate troublesome residue build-up, its gas flow characteristics are superior to other CHN Analyzers leading to longer-term calibration stability as well as enhanced accuracy and precision for measured sample data.
