Smart Evaporation Technology: Increase your Lab Efficiency

Aug 11 2021

Learn about Smart Evaporation

An informative web page published by BioChromato Inc explains how Vacuum Vortex Concentration (VVC) methodology allows users of its Smart Series of Evaporators to remove even higher boiling solvents including water, DMSO and DMF quickly and safely.

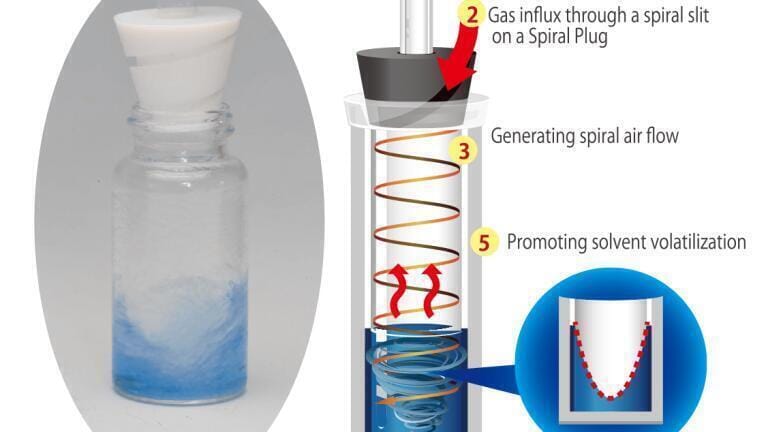

How does Vacuum Vortex Concentration (VVC) methodology work?

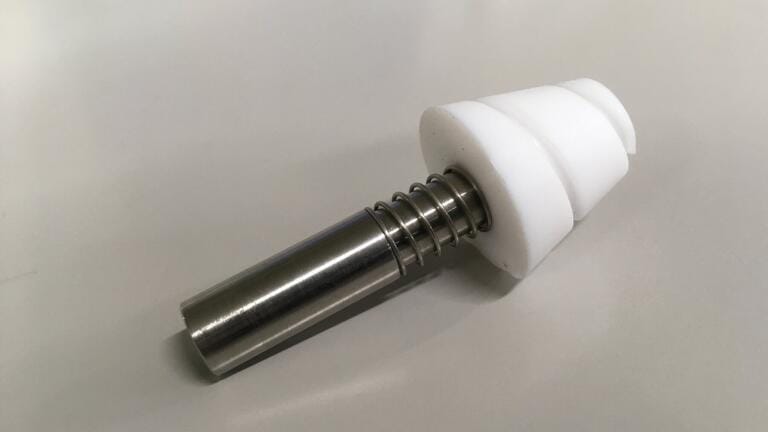

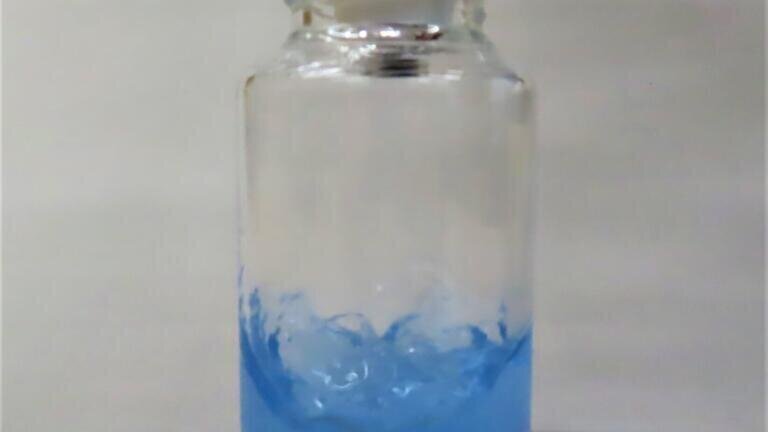

At the heart of each BioChromato Smart Evaporator is a highly efficient spiral airflow created by a special concentrator plug or ‘Spiral Plug’. This novel Spiral Plug technology generates a helical flow of air or inert gas agitating the surface of the solvent, increasing its surface area and thereby greatly improving the effectiveness and speed of evaporation.

Beneficially since the evaporation vessel on a Smart Evaporator isn’t under high vacuum, there is no risk of bumping or splashing. Using VVC methodology - Smart Evaporators increase efficiency by eliminating the time-consuming task of cleaning apparatus, potential loss of precious samples and the need to repeat the drying down process that can result from solvent bumping or splashing.

To read this informative introduction to the Vacuum Vortex Concentration (VVC) methodology and how it can improve concentration or drying of samples please visit

More information online
