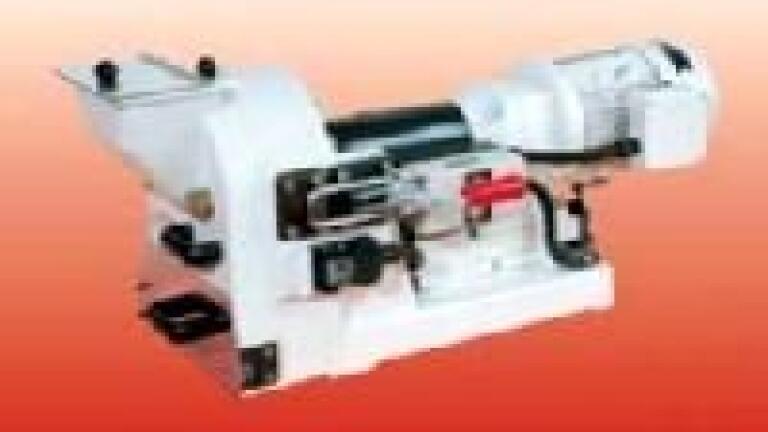

Laboratory Disk Mill the pulverisette 13

The recommendation, from Fritsch GmbH, for all processing laboratories with a continuous delivery of brittle to very hard materials for batch or continuous fine grinding. The maximum feed particle size is approx. 20 mm edge length. The fineness attainable (d50) is down to approx. 12 mm (largest gap width) or 0.1 mm (smallest gap width).
The maximum throughput of 150 kg/h depends on the gap setting and the hardness of the sample. The relatively large throughput enables it to be used in the pilot scale or in the small size production, for example: slag-disintegration for the reclamation of precious metals.

Typical fields of application:

Mining and steel industries
Ores, coal, coke, slags

Ceramics
Steatite, sintered ceramics, electrotechnical porcelain, fire-proof clay

Rocks and soils
Bauxite, slags, quartz, clinker, gypsum, cement, lime, chalk

Glass
Frits, glass types, raw materials

Soil research
Dried soil samples, sewage sludge, hydrological sediments, drilling cores

Method of operation:
The material to be ground is crushed between two counteracting grinding disks with course radial toothing on the inside as a result of compressive and shearing stresses. The staged toothing means that the material is preground in the inner chamber of the grinding disks before being finely ground in the outer chamber.
The gap width between the two grinding disks is set from the outside – also during operation – and determines the fineness of the end product
