• Routine Scale-up of Photochemistry Reactions

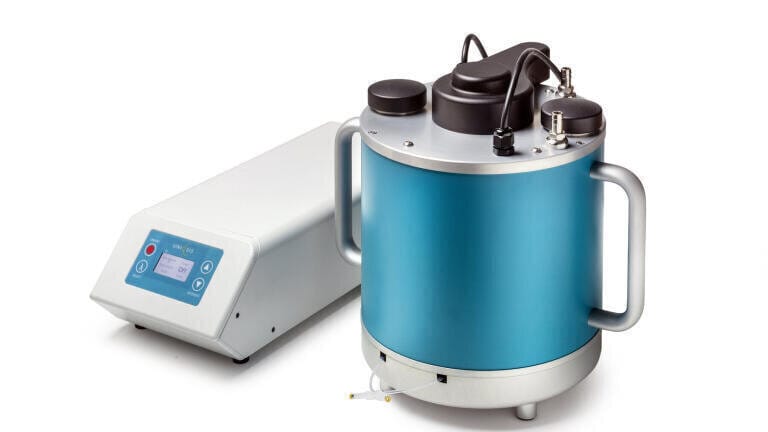

    A PhotoSyn™ high power LED photoreactor with controller.

Laboratory Products

Routine Scale-up of Photochemistry Reactions

Jan 16 2023

The Uniqsis PhotoSyn™ is a high-power light source module for continuous flow chemistry systems proven to enable synthetic chemists to routinely scale-up their photochemistry reactions from milligrams to several kilograms per day.

The PhotoSyn™ is designed to provide scientists with a high-power LED light source for continuous flow applications. Using a pair of enclosed curved cooled LED arrays, the PhotoSyn™ efficiently focuses light inwards onto a central coil reactor. Each array is composed of 360 individual LEDs that provide a high photon intensity to facilitate reactions in coil reactors (up to 52 ml) and enabling easy reaction scale-up.

The unit is available with different standard LED configurations including 365nm and 455nm as well as a 3-colour option of green, white, and blue. Custom excitation wavelength versions of the PhotoSyn™ are also available on request. Offering the versatility to be optimised to suit your photochemical application, the PhotoSyn™ is designed to integrate with the Uniqsis Cold Coil™ and the Polar Bear Plus Flow™ reactor modules.

To maximise safety, PhotoSyn™ has been designed to operate without any light leakage, and therefore does not require a tinted or light-tight enclosure. Safety interlocks are also fitted to prevent the possibility of accidental exposure to high intensity LED light should an attempt be made to remove the PhotoSyn™ from the reactor module whilst in operation.

Learn how the University of Cambridge used the PhotoSyn™ to scale-up a photoredox cross-coupling of boronic acids reaction with 81% yield (Publication 65).

More information online
