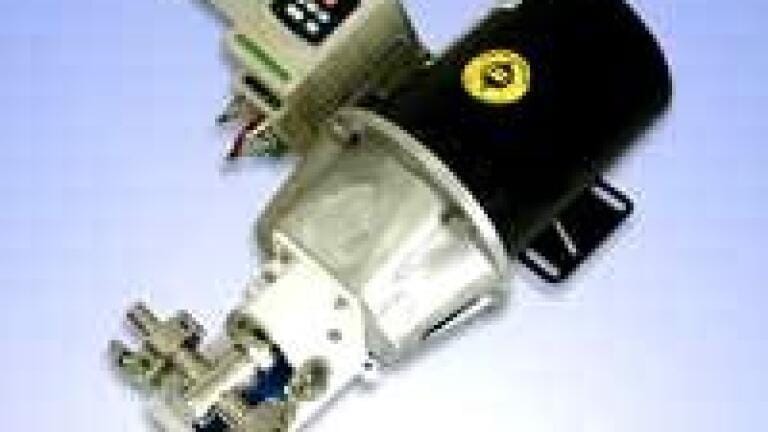

High Torque, Variable Speed Metering Pump

Jan 28 2008

Fluid Metering Inc. has introduced the NEW Industrial Variable Speed Pump (IVSP) for Industrial & Process Applications.

Featuring a High Torque 3 Phase Drive and a 3 Digit LED Display Control Module, the IVSP is ideal for handling a broad range of fluid viscosities. The complete system consists of a High Torque variable speed drive, integrally mounted FMI Valveless Pump Head, and controller. The controller is a space-saving, DIN design, ideal for process control panels and control rooms.

Motor Speed can be adjusted either manually with the Front Panel Membrane Switches or electronically using a 0-20 mA, 4-20 mA or 0-10 VDC Input Signals. Additional Control Functions include Start, Stop, Acceleration, Forward and Reverse.Flow Rate is determined by the combination of Drive Speed, Piston Size and Pump Head Stroke Length. Flow Rates cover a range from 0.45 ml/min up to 2300 ml/min. The Controller operates on 115 VAC, 1 Phi 50/60 Hz with an output to the Motor of 230 VAC, 3 Phi 50/60 Hz. All Electronic Components are UL and CE compliant.
