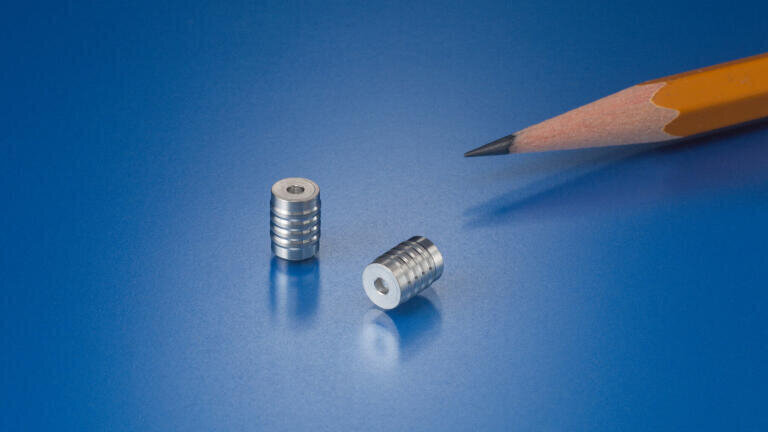

Miniature Medical Grade 316 S/S Check Valve is Ideal for Plastic Manifolds

The latest product to be introduced by Lee Products is a miniature medical grade stainless steel cartridge style corrosive resistant check valve specifically designed for installation into plastics that have sufficient elongation, such as Nylon, Polyethylene, Polypropylene, Acetal and PEEK.

This new 5.5mm CCPI Series valve is only 7.3 mm long, is constructed from 316L stainless steel and features a ceramic ball which, along with its robust design and construction, provides exceptional resistance to aggressive fluids.

The valve features an innovative barbed design which ensures simple, press-in installation, superior retention as well as preventing any by-pass leakage around the valve.  They can be installed in either direction, enabling forward or reverse flow configurations to facilitate optimal design flexibility. Flow capacity is 20 lit/min at 200 KPa pressure drop.

Lee’s medical grade check valves benefit from a robust design and 100% performance testing, which results in a consistent, long-life performance making them ideal for medical, ink jet printing and other similar micro-hydraulic liquids handling applications.
