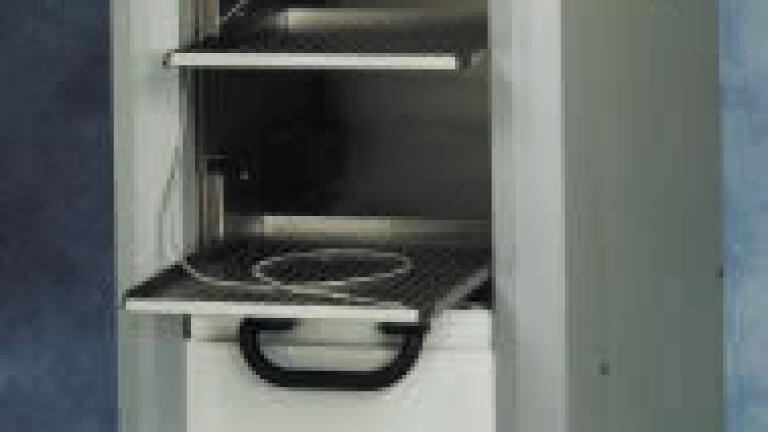

Slim and Stylish

LTE Scientific’s Touchclave-Lab range of multi-purpose autoclaves have a unique combination of features to assist the operator and improve efficiency: touch-screen controls; multi-program system; automatic internal data archiving; innovative interlocked, vertical easy-glide sliding door; slim line design – ideal for the space conscious lab; water jacketed to provide fast cycle times; rectangular section chamber; and available in 150, 200 and 300 litre sizes.

Other options available on this product include vacuum and air ballast systems and effluent-retention (cat 3).

The ‘K’ models operate using either an integral steam generator situated beneath the chamber or the customer’s own direct steam supply. These models are fitted with water jackets as standard, which offer significantly reduced cooling times.

The economical ‘F’ range can operate in areas where water drainage is not available, using steam generated from within the chamber.

All models incorporate a state-of-the-art touch-screen control system for entering and displaying all commands, cycle and program data and alarms. A self-diagnostic system highlights any abnormality in the cycle. All models have an internal data archiving facility, which allows up to 5000 cycles to be stored on a single internal flash card.

Eight load specific cycles can be stored in the memory, with an optional memory expansion facility boosting the total to 20. Users can develop their own cycle profile simply by touching the ‘create own cycle’ icon and following a series of screens to input their own parameters and cycle titles. Optional features include vacuum, air ballast and cat.3 effluent retention.
