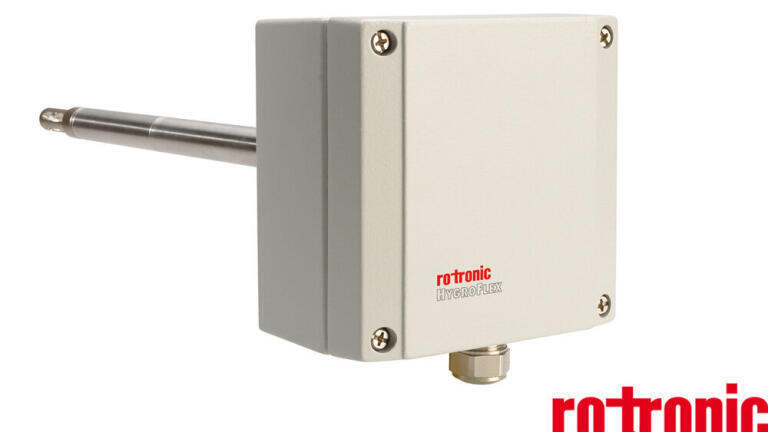

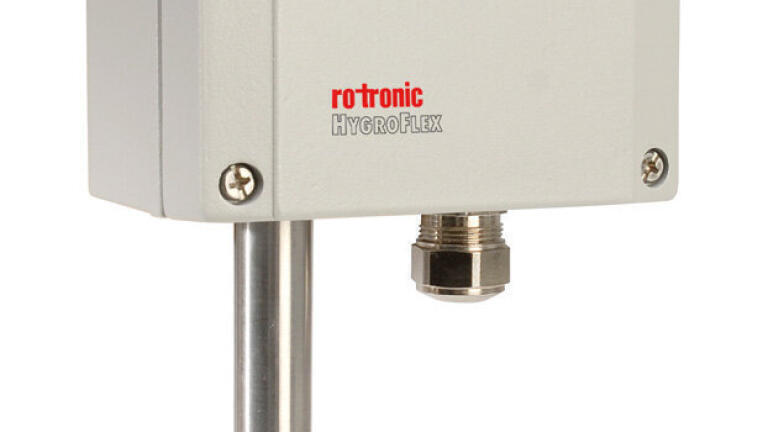

The HygroFlex7 series

The new HygroFlex7-series are equipped with sturdy metal housings and stainless steel probes for harsh industrial conditions. Based on AirChip3000 technology, this indicator achieves a degree of accuracy not seen before. Every transmitter can be used as a simulator with fixed values. This is a major advantage in system configuration and validation.

Highlights

• Robust industrial housing
• Ideal fire protection classification and degree of protection for your application
• All metal construction for wall, cable and duct versions
• Relative humidity, temperature measurement and dew point calculation
• Outstanding accuracy and repeatability
• Hygromer IN-1 Humidity Sensor
• Auto-diagnostics with error compensation
• All metal construction
• Freely selectable and scalable analog outputs

Technical specifications:

• Measurement accuracy at 23 °C: ±1.0 %rh / 0.2 K
• Operating limits: -50…100 °C / 0…100 %rh
• Measurement range (probe) : up to -100…200 °C / 0…100 %rh

You can find further detailed information about the new HygroLog HL-20/21 and all about humidity and temperature measurement at ROTRONIC at www.rotronic-humidity.com, by E-Mail [email protected] or by telephone at +41 44 838 11 44.
