The Intelligent Transmitter

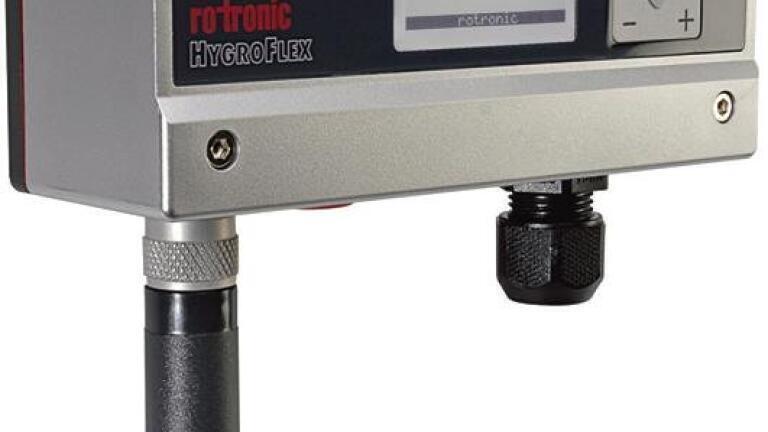

The new HygroFlex5 series from Rotronic, is the latest development in HVAC transmitters for relative humidity, temperature and dew point. Users benefit from its unique product advantages: freely selectable and scalable analogue outputs and which is network-capable, thanks to the digital outputs; in addition, it can handle all psychrometric calculations and can be updated via the internet.

The series offers maximum reproducibility (<0.02%RH) and guarantees a system precision of <0.8 %RH and 0.1 K. The load impedance can be up to 500 Ohm.

The HygroFlex5 is available as a duct-mounted (use in ventilation ducts) or wallmounted (use in technical areas) version. All sorts of different probe types can be connected to the transmitter. Customers can choose, for example, between a standard climate probe (wall or duct mounting), for use in the range - 40….100° or an industrial probe for process applications. Area of use 0…100 %RH, -100…200°C and 0...400 bar (0...5800 PSI).

The HygroFlex5 series is ideal for all applications where exact measurement of humidity and temperature is of decisive importance, for example the food and pharmaceutical industries, printing and paper industries, meteorology, agricultural sector, archaeology and climatology. There is hardly a field today in which these parameters may be ignored.
