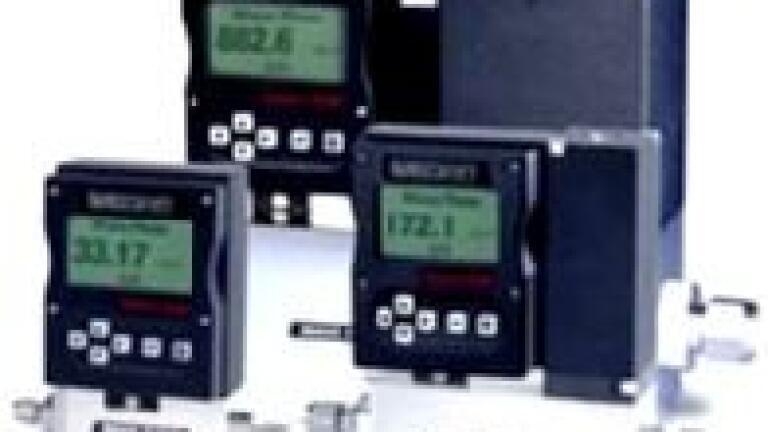

High Performance Digital Mass Flow Meters and Controllers
Jul 25 2008
Excellent accuracy and repeatability coupled with unsurpassed instrument stability result from a patented, inherently linear design,
advanced platinum sensor technology, and a valve that is strong, flexible and forgiving. Our 100 Series family of instruments has raised
the bar and set a higher standard in the Performance MFC marketplace.
Smart-Trak is our highest performance MFC and is considered one of the finest MFC`s in the world. Smart-Trak is the culmination of a massive three year development effort that has defined a new breed of "Performance MFC".
Smart-Trak is designed so the physics are correct! Excellent accuracy and reliability coupled with unsurpassed instrument stability result from a patented, inherently linear design, advanced platinum sensor technology, and a valve that is strong, flexible and forgiving. Smart-Trak controls gas mass flow from Smart-Trak features Dial-A-Gas® Multiple Gas capability for true digital performance in many gases with the same unit. The Model C100 can be used with any clean gas including mixtures, toxics, corrosives, and combustibles. The unique pilot module replaces expensive control/readout electronics and is available mounted to the face of the instrument or in a convenient hand-held version.
Unique Mass Flow Meter Specs & Features
⢠Accuracy of +/- 1% of full scale
⢠Accuracy of +/- 0.7% of reading +.3% of FS
⢠316 stainless steel construction
⢠Flow ranges from 0 to 10 sccm to 0-200 slpm.
⢠Fast-response control valve
⢠True digital performance with great flexibility
⢠âPrimary Standardâ calibration& NIST traceability
⢠Dial-A-Gas® Technology
⢠10 pre-programmed gases come standard
⢠Substitute up to 9 gases of your own
⢠Unique pilot module allows these control functions:
⢠Gas type
⢠Setpoint value
⢠Setpoint source
⢠Engineering units
⢠Output signal
⢠Valve state (open, closed or automatic)
⢠Full scale value
⢠Control functions also available from PC via RS-232
⢠Traditional analog control also included
⢠4-20 mA
⢠0-5 Vdc
⢠0-10 Vdc
⢠1-5 Vdc
⢠Source code for RS-232 communication provided
⢠Small footprint makes drop-in replacement easy
⢠Single-sided 24 Vdc power supply
⢠CE approval
