Ramping up Melting Point Versatility

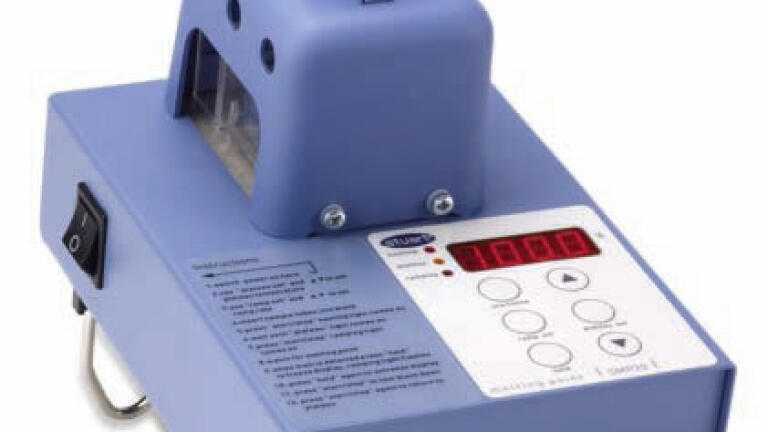

Stuart’s launch of the SMP20 digital melting point apparatus sets a new benchmark by offering 0.1ºC temperature resolution and an adjustable ramp rate in a cost-effective instrument.

Building on the success of the SMP10 with its high accuracy and easy operation, the SMP20 incorporates features designed to provide increased versatility. A four-digit LED display resolves temperature to 0.1 of a degree and to facilitate temperature recording, a hold button has been added. This enables the user to freeze the display at the melting point while the block temperature continues to rise. The SMP20 also provides the ability to

program the ramp rate anywhere within the range 1ºC to 10ºC per minute.

For maximum ease of use the SMP20’s simple-to-follow instructions are printed directly on the instrument in most European languages. The unit heats up quickly and remains at the selected plateau temperature until the user is ready to start the test. Two samples can be tested simultaneously and these are viewed via a magnifying lens aided by built-in illumination. Extendible back feet allow operation at the optimum viewing angle and the unit’s design gives full access to the block for easier cleaning.

Jackie Taylor, Stuart Product Manager, commented: “With 0.1ºC resolution, a hold button and an adjustable ramp rate, the SMP20 represents excellent value. This new instrument makes an ideal choice for chemists in both academia and industry who require these particular features but not the advanced capabilities of a much more expensive instrument.” The SMP20 is supplied complete with a pack of 100 melting point tubes and a calibration certificate showing the individual serial number for traceability.
