All-in-One Solution for Particle and Protein Characterisation

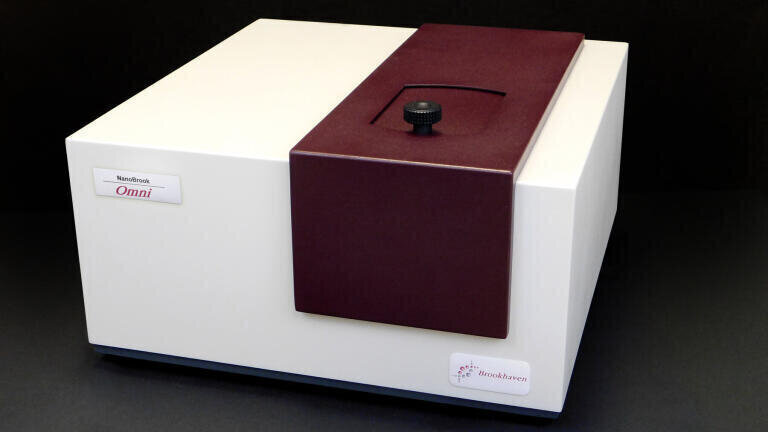

The NanoBrook Omni from Testa Analytical Solutions combines leading edge particle sizing and zeta potential technology in one powerful and accurate instrument for particle and protein characterisation.

Drawing upon high performance Dynamic Light Scattering (DLS) for particle sizing and distribution, and on Doppler Velocimetry (Electrophoretic Light Scattering) for zeta potential, most measurements using the NanoBrook Omni only take a minute or two.

The NanoBrook Omni offers labs the versatility to measure samples in almost any aqueous or organic solvent based suspension. For samples with low mobilities, such as saline and PBS, the instrument also includes a Phase Analysis Light Scattering (PALS) measurement capability.

The NanoBook Omni utilises three measurement angles to ensure truly unbiased, high sensitivity particle sizing and zeta potential results. Measurements of traditional colloids are usually made at 90° scattering angle for best results. For nanoparticles, proteins and peptides (< 50nm), the NanoBrook Omni allows samples to be measured using a 173° backscattering angle to ensure best signal-to-noise and reproducibility of measurements. Finally a 15° detection angle can be selected for added sensitivity with aggregation measurements. Zeta potential measurements are always performed using the 15° detection angle to minimise diffusion broadening.

Perhaps the most important benefit for users of the NanoBrook Omni is its outstanding reproducibility from sample-to-sample, operator-to-operator, and instrument-to-instrument.

For further information on the NanoBrook Omni please click here.
