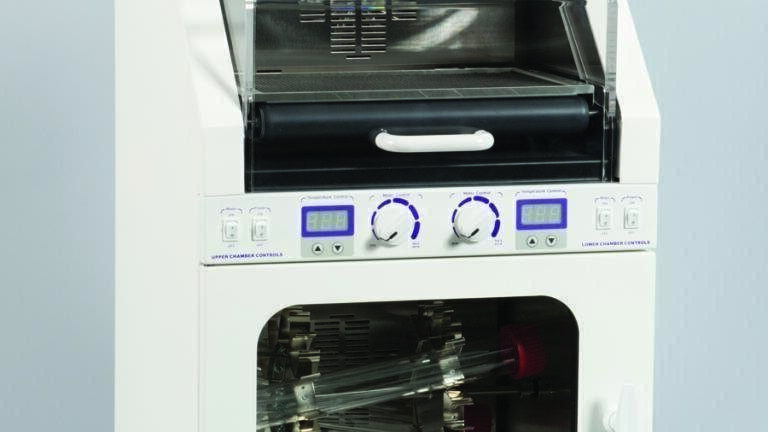

HM-4000 Precision Heated Hybridization Oven

UVP, LLC offers a range of hybridization ovens with microprocessor controls for maintaining precision heating and mixing of samples. The dynamic mixing capability is ideal for creating the optimum conditions needed for cDNA library screenings, primer synthesis and nucleic acid hybridization.

Models include the HM-4000 Multidizer™ Hybridization Oven is designed with a variety of motion options – shake, rock, roll and rotate. Two compartments allow for hybridization and blotting procedures requiring different settings. Each section operates independently for multi-function operation. The lower chamber features the state-of-the-art microprocessor temperature and variable speed controls:

• Temperature control (ambient to 99.9°C)
• Variable speed control (10 to 15 RPM)
• Large LED display
• Stainless steel internal construction
• Multiple bottle sizes twenty 35 x 150mm or ten 35 x 300mm bottles
• Off-set bottle positioning ensures thorough mixing of samples.

The upper chamber of the HM-4000 has a temperature range ambient to 80°C and operates with a roller action to operate a shaker tray (included) or an optional orbital tray for accommodating a variety of container sizes. Switch to bottles with the use of an optional acrylic carousel. Variable speed control of 12-20 RPM enables consistent saturation of samples for washing or hybridization. Optional shaker tray speed: 54 – 106 cycles/min. Optional orbital tray speed is motorized from 1 – 30 RPM.

Please click here for full specifications and details on UVP’s line of hybridization ovens.

Hybridization Techniques and Protocols are discussed in a UVP document.
