Clean Room
The requirements in respect of the cleanliness of environments have increased dramatically, particularly in the areas of industrial production, such as optics, packaging and in laboratories and research. A particulate-free, sterile environment is often crucial in such fields. For this reason, considerable amounts of money are often spent and enormous technical effort is invested in erecting large clean rooms, even though clean room conditions are only actually needed in part of the space.

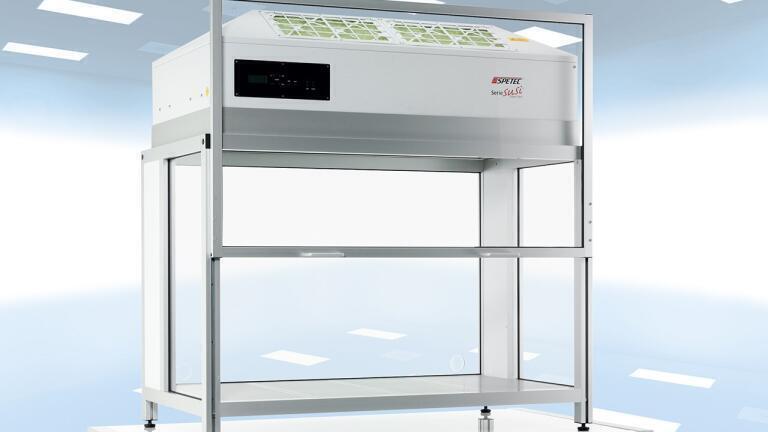

It is for exactly applications such as these that Spetec® offers its Laminar Flow Box FBS series of products which make it possible to create clean room conditions precisely where they are needed. A single Spetec® Flow Box FBS delivers an effective clean room area of between 0.37 and 1.12 m². Although this may not sound like much, it is often more than enough because the type H14 filter used in the Flow Box FBS removes at least 99.995% of all particles – based on a particle size of 0.12 μm in accordance with MPPS.
The Spetec® Flow Box FBS therefore improves the air quality by at least a factor of 10,000 compared to the ambient air. As a result, clean rooms corresponding to ISO class 5 are achieved at a very acceptable cost and without the need for any building work.
The Spetec® Flow Box FBS is available in a number of different models and has been tested and certified by the Fraunhofer Institute for Manufacturing Engineering and Automation. It goes without saying that only materials suitable for clean room applications - such as acrylic glass and anodised aluminium – are used.
The Flow Box is available as both a floor-standing and table variant.
More information online
