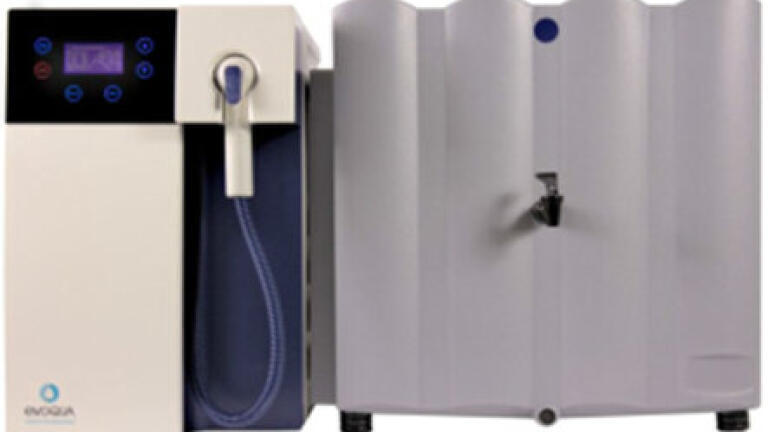

Ultra Clear Glass Panel with circulation loop connection

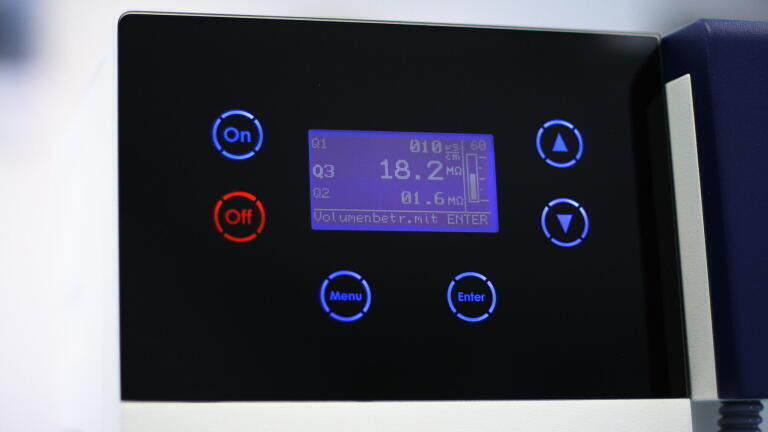

This special Glass Panel edition is equipped with a control panel made of black glass which includes the monitor and capacitive sensors. The Ultra Clear GP system is equipped with all the necessary components to produce reagent grade water directly from municipal tap water. The water exceeds all reagent grade water quality standards. Options include: ultrafiltration, UV-oxidization and TOC monitoring for all applications. Pretreatment, reverse osmosis module, deionization cartridge, storage tank, UV-oxidization chamber, polisher, ultra-filter and sterile filter are all integrated into one system. This Edition with circulation loop has a flow rate of 20 l/h and produces DI water directly into the 60l tank with a UV Lamp maintain quality of DI water.

Customer can withdraw DI water from dispenser with a TOC value of < 5ppb.

The loop can be led and connected to an external consumer. The distance between the water system and the consumer should not exceed 5 meters.

The backflow will be led to the tank in order to avoid standing water, which may lead to a fall off in water quality.

The advantages for this system are:

• Large volume, bacteria free Type II water with a TOC value of <5ppb
• 0.1µm sterile filter with 1.000 cm²
• Low running cost
• Low capital cost
• An additional 60 L Tank with the circulation loop
• Circulation loop maintains the water quality as well as it can provide
  the pressurized feed
• Inbuilt submersible UV lamp in the tank.
• Complete package and ready to connect for the customer
