• High-performance grinding down into the nano range
  • Safely guided insertion of the grinding bowl
  • Easy closing of the clamp, automatic locking via ServoLock

Laboratory Products

High-performance grinding down into the nano range

Sep 05 2018

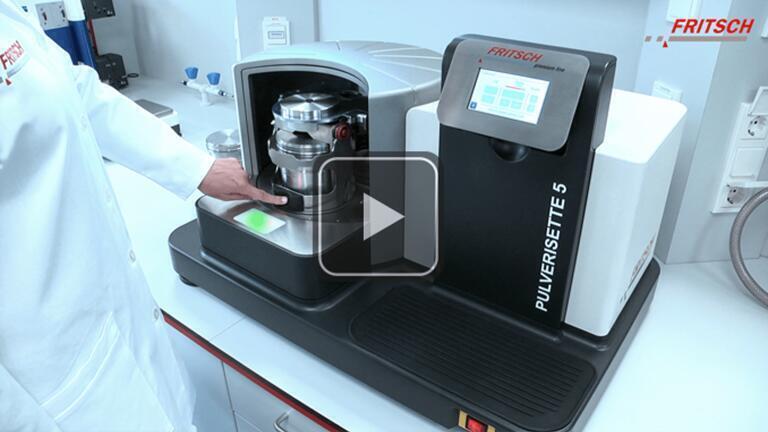

The new Planetary Mill PULVERISETTE 5 premium line with automatic clamping of the grinding bowls by the mill is ideal for fast powerful wet and dry grinding, mechanical alloying, mixing and homogenising with reliable results down into the nano range. Grinding has never been safer!
Ideal for: hard, medium-hard, soft, brittle and moist samples in the areas of Geology/Mineralogy, Metallurgy, Ceramics, Material research/Mechanical alloying, Nanotechnology, Pharmaceuticals, Chemistry, Biology and Sample preparation for analysis.

Your advantages with the Planetary Mill PULVERISETTE 5 premium line:

  • Extra strong 2.2 kW drive power and extremely high centrifugal acceleration up to 64 g and up to 800 rpm (rotational speed of the bowl 1600 rpm)
  • Sample quantities up to 450 ml, max. feed size up to 10 mm
  • Motor-driven ServoLOCK clamping of the grinding bowls
  • Safe and user-independent reproducible clamping
  • 2 grinding stations for grinding bowls 125 - 500 ml volume
  • Intuitive touchscreen operation with colour display.

Grinding has never been safer
With the completely brand new ServoLOCK clamping of the grinding bowls and the automatic check of the fastening of the bowls inside the mill, man and machine are optimally protected. In the event of impermissible operating states, the machine blocks the start of a grinding – and if an imbalance occurs it automatically shuts off. It doesn’t get any safer than this. Just insert the grinding bowl – start – done!

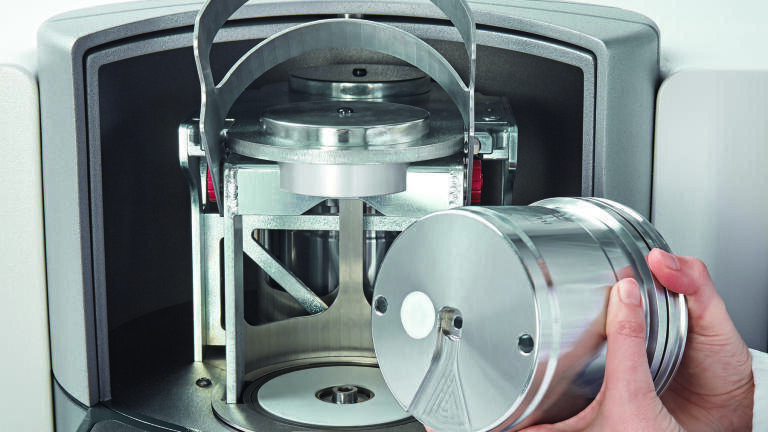

FRITSCH premium advantage: Safely guided insertion
The grinding bowl is simply inserted in the PULVERISETTE 5 premium line from the front into the holder. Correct positioning is automatically ensured by a practical guide. The PULVERISETTE 5 premium line does not start until both bowls are correctly inserted and prevents due to bowl detection via RFID chip, the setting of too high speeds depending on the bowl material used.
Your advantage: guaranteed constant, reliable results – incorrect operation impossible.

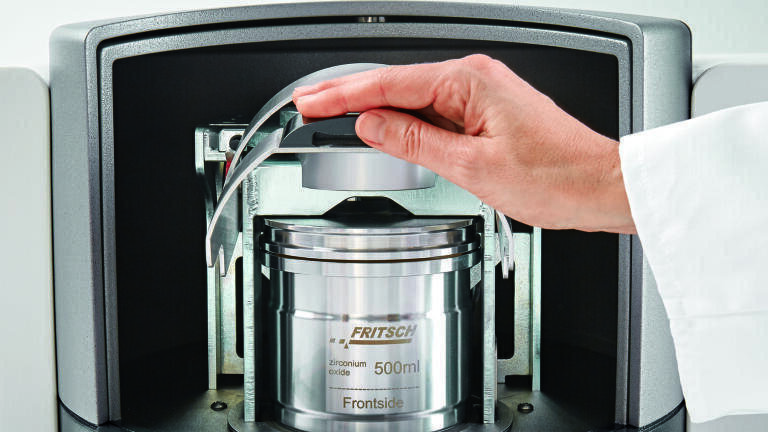

FRITSCH premium advantage: Motor-driven grinding bowl clamping
The revolutionary ServoLOCK is activated with a single hand motion by pressing down the clamp. It is automatically locked by the machine via ServoLOCK instead of manually. A LED light shows that the bowl is correctly inserted and clamped.
Your advantage: extremely safe and easy operation with reproducible, user-independent clamping at any time – without screwing or other manual fastening.

Test the FRITSCH Planetary Mill PULVERISETTE 5 premium line.
Send us your most difficult sample – we will carry out an individual sample grinding for you. Compare for yourself!
Please click here for up-dated information on the whole FRITSCH range for efficient sample preparation.
