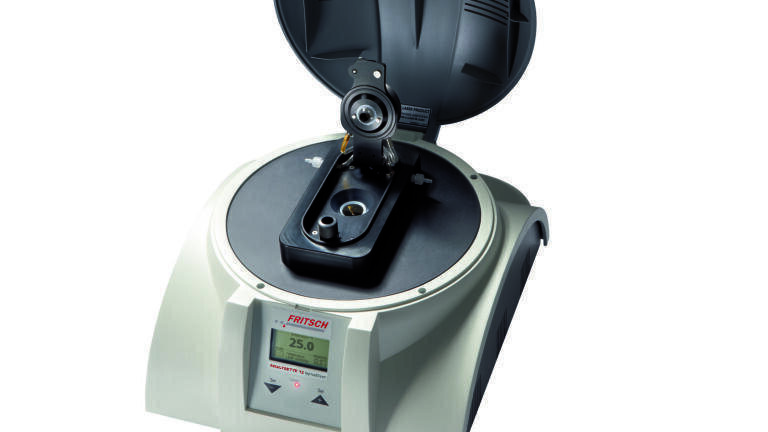

Nano Particle Sizer ANALYSETTE 12 DynaSizer - Sizing into the nano range!

Particle size measurements with dynamic light scattering between 1 and 6000 nm!

The new Nano Particle Sizer ANALYSETTE 12 DynaSizer measures real particle size distributions with smallest sample quantities and in an extreme wide concentration-range of 0.0003 % - 40 Vol.-%. Fast and reliable with direct sample application into the instrument without any cuvettes.

* Smallest sample volumes

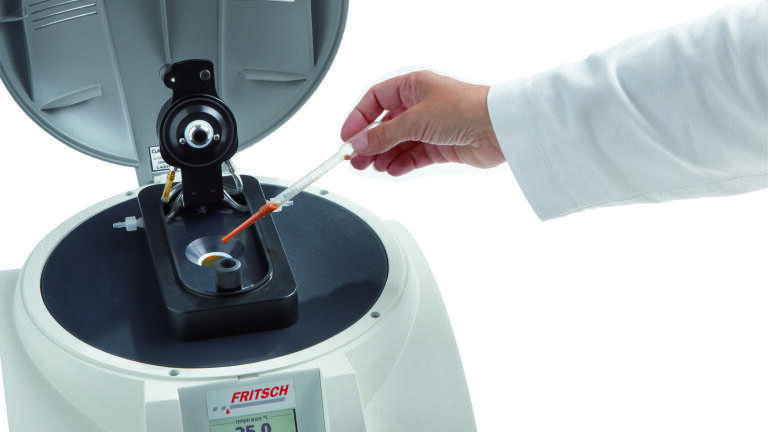

For measurements with the ANALYSETTE 12 DynaSizer only smallest sample volumes of 50 µl – 5 ml are necessary, which are applied directly onto the optical measuring cell inside the instrument; making disposables such as cuvettes or similar obsolete. Due to the intelligent design, cleaning is as easy as a child’s play.

* Measurement of ultra thin layers
Due to the cuvette-free design the thickness of the measurement layer can be variably adjusted. This enables measurements of even extremely thin layers and prevents unwanted multi-scattering effects. It also facilitates the measurement of highly concentrated suspensions as well as in opaque media.

* Variable laser power
The power of the laser of the ANALYSETTE 12 DynaSizer is variably adjustable and allows measurements of very dark samples or high particle concentrations of up to 40 Vol.-%.

* Particle size distribution and particle concentration
The maximum output power of 65 mW at a wavelength of 658 nm allows the measurement of low particle concentrations. In addition to analysis according to the cumulant method, the powerful Padé-Laplace algorithm is also available for multimodal samples. Combined with the multi-acquisition mode, it is possible to determine medium particle sizes, complete particle size distributions and the polydispersity-index.

Effective, user-friendly and accurate to the nanometer!

The advantages of the Nano Particle Sizer ANALYSETTE 12 DynaSizer – at a glance:

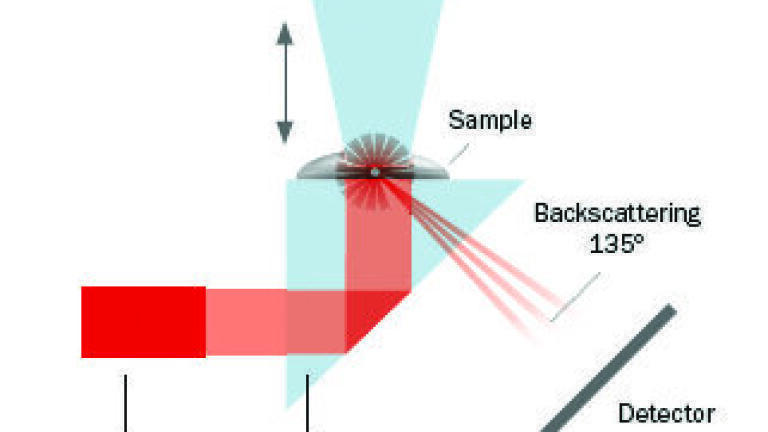

* Particle size measurement via dynamic light scattering at a constant scattering angle of 135°
* Measuring range of 1 to 6000 nm
* Particle concentrations from 0.0003 % up to 40 Vol.-%
* Smallest sample quantities 50 ml – 5 ml
* Simple sample feeding directly into the instrument without cuvette
* Ultra-Thin Layer – an extremely thin measurement layer avoids multiple scatterings
* Variable laser intensity according to the dispersion concentration
* Dark dispersions like ink or oil are measureable without any difficulties
* Limitation of laser-induced-temperature-effects
* Sample temperature selectable between 15ºC and 70ºC
* Intelligent evaluation with high-performance Padé-Laplace algorithm
* Measurement of the real particle size distribution
* ISO 13321 / 21 CFR part 11
* Extremely easy handling

Test the FRITSCH Laser Particle Sizers!
Send us your sample for a free of charge sample measurement – we will send you a detailed analysis protocol. Compare for yourself!
