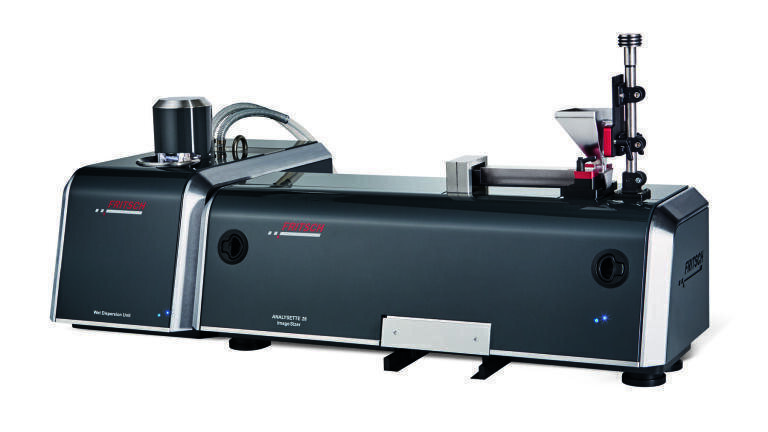

  • Particle Sizer ANALYSETTE 28 ImageSizer for wet measurement of suspensions and emulsions
  • Uncomplicated single image analysis via the FRITSCH Cloud and Gallery

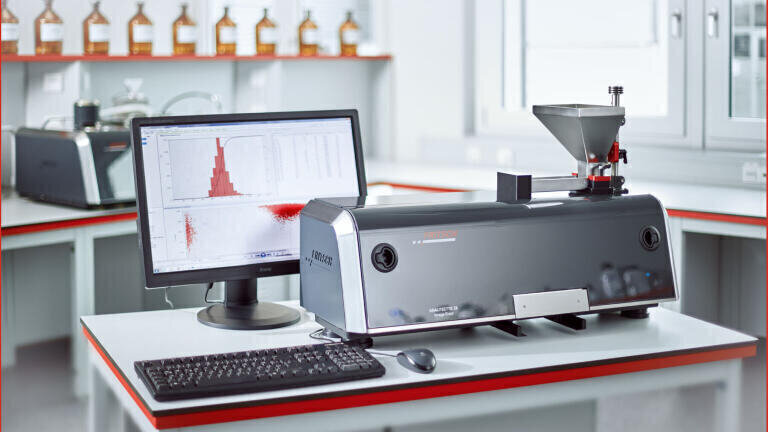

Reproducible Particle Shape and Size Analysis between 20 µm and 20 mm

Nov 06 2019 Read 313 Times

The FRITSCH Particle Sizer ANALYSETTE 28 ImageSizer delivers multiple shape parameters and evaluation possibilities for particle size for reproducible measuring results in less than 5 minutes in quality control, research, laboratory – and is a fast, cost-effective alternative to sieving.

The FRITSCH ANALYSETTE 28 ImageSizer for dry and wet measurement is the ideal Particle Sizer for all applications that require accurate and reproducible measuring results for both particle shape and size. The optical process of Dynamic Image Analysis delivers accurate measuring results, which are available immediately.

Your advantage: Great flexibility for different measurement tasks for particle sizes of 20 µm – 20 mm in quality control, research and laboratory – and is a very easy and cost-effective alternative to sieving.

Choose According To Your Needs.

Easy wet measurement of suspensions and emulsions

The ANALYSETTE 28 ImageSizer is in combination with the corresponding wet dispersion unit ideal for measurement of particle shape and size of suspensions and emulsions.

Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids.

Your advantages

  • Extra wide measuring range of 20 μm – 2.8 mm
  • Strong, freely adjustable ultrasonic power for deagglomeration
  • Extremely quiet dispersion with strong pumping power
  • Benzine, alcohol and many organic solvents can also be used as suspension liquid as a standard feature
  • Automatic rinsing cycle
  • No dead space in measuring and rinsing circulation system
  • Fast and consistent cleaning

Efficient dry measurement of powders and bulk solids

The ANALYSETTE 28 ImageSizer is the ideal Particle Sizer for fast analysis of particle shape and size of dry, free-flowing materials. Via the optical analysis of the particle shape and particle size, you can identify damaged particles, contaminates, agglomerates or oversized and undersized particles accurately and fast and view them completely uncomplicated in single images.

Your advantages

  • Extra wide measuring range of 20 μm – 20 mm, individually adjustable
  • 3 telecentric lenses are available
  • Up to 75 images per second
  • Agglomerates are preserved
  • Practical Clean Design of the measuring chamber
  • Optimal number of particles due to automatic adjustment of the feeder
  • Easy handling

And if your measurement tasks change, your ANALYSETTE 28 ImageSizer can be retrofitted at any time.

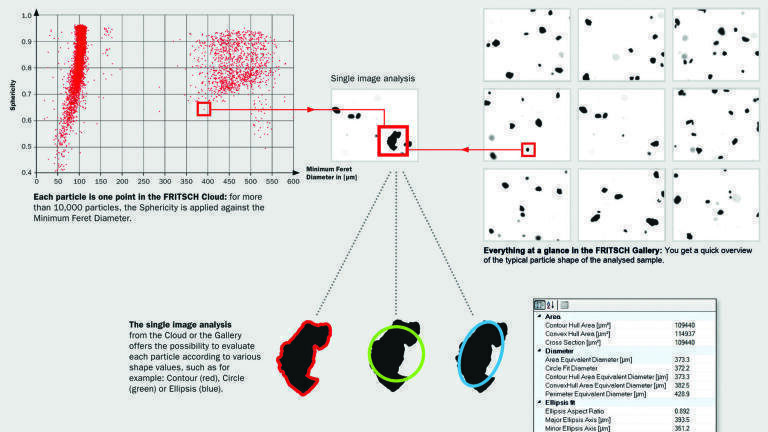

State-of-the-art, simple and fast evaluation via FRITSCH Cloud and Gallery

The evaluation of the measuring results is uniquely simple with the ANALYSETTE 28 ImageSizer. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud as well as in the FRITSCH Gallery. You freely choose which statement is of interest to you: for example the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section. Or display the particle size distribution as a cumulative curve, as a bar chart or in a table form.

Test the FRITSCH Particle Sizers!

Send us your sample for an individual sample measurement – we will send you a detailed analysis protocol. Compare for yourself!

Click here for Up-to-date information on FRITSCH high-tech particle technology – from Dynamic Image Analysis to Static Light Scattering.
