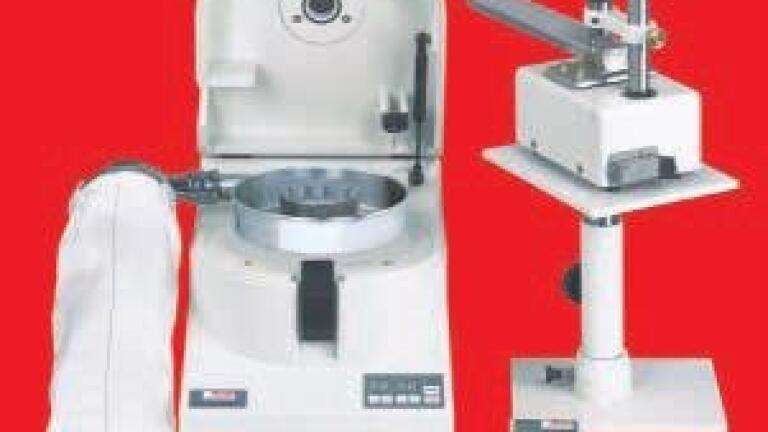

The All-Purpose Mill for Rapid Comminution

The Fritsch Variable Speed Rotor Mill PULVERISETTE 14 grinds rapid and effectively soft to medium-hard, brittle as well as fibrous samples.

Even the comminution of samples, which are difficult to grind or temperature-sensitive samples and plastics, are no problem for the PULVERISETTE 14 due to its very efficient air cooling. In addition to the special air cooling of the PULVERISETTE 14, Fritsch have developed the Fritsch-impact blades. Due to its clever design it allows together with a sieve ring a very gentle grinding of the sample, which in many cases without impact blades would not be possible. The result: increased grinding action for a particularly fast and effective grinding, the heat load is minimised. And the ideal solution for especially temperature-sensitive materials such as powder coatings or plastics, as well as for smoothly pre- and fine grinding of hard-brittle to soft, fatty sample or samples with a residual moisture.

Even when heavy-metal-(iron-)free grinding or sample preparation according to standard for RoHS-analysis is necessary, the perfect accessories are available.

The Variable Speed Rotor Mill PULVERISETTE 14 with a real top speed of 20.000rpm is the Turbo Mill for sample preparation. With a feed particle size of < 10mm, a final fineness of up to 40μm can be achieved. The throughput depends on the material and lies between 0.05 and 5 litres per hour. Rotors, sieve rings and collecting vessels made of different materials and in different sizes enable an optimal adjustment of the instrument to the application.

Advantages with the Fritsch Variable Speed Rotor Mill PULVERISETTE 14: rapid sample throughput as a result of high-speed grinding and simple cleaning; simple and easy change of all grinding parts without tools; simple, contamination-free cleaning and assembly of all grinding parts outside the instrument; variable speed adjustment from 6,000 to 20,000rpm; automatic speed following system for constant grinding; efficient air cooling of the rotor, all motor components and the grinding material due to a sophisticated routing of the air flow; grinding parts made of stainless steel, pure titanium, TiN-coated and WC-coated; and rapidaction

clamping lock.

For the Fritsch Variable Speed Rotor Mill, there is an extensive range of accessories available.
