New Ultra-Fast Dialyzer™

The new Ultra-Fast DIALYZER System from Harvard Apparatus is compact, easy to use and designed to meet the

wide range of applications found in research. The new unit has a double sided, 24mm diameter chamber thus increasing the diameter from 18mm to 24mm. The increased diameter results in a larger surface area for sample exposure and enhanced exchange rates.

The Ultra-Fast DIALYZER™ chambers can be used for a wide range of applications including Electro-Dialysis, Electro-

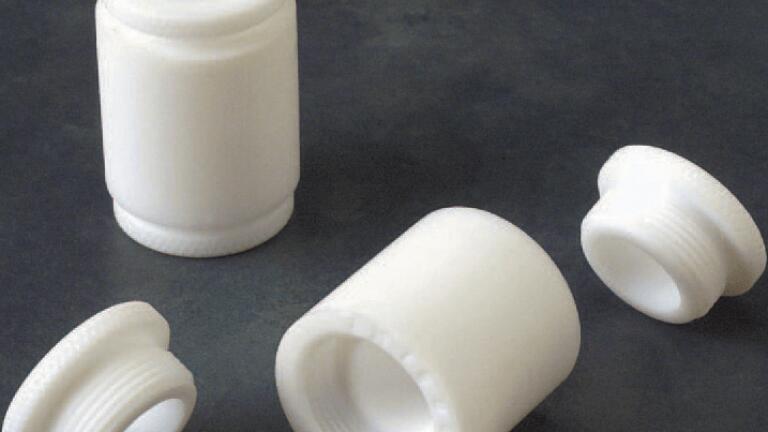

Elution, Elution of Proteins and Nucleic Acids from Gels and Electro-Concentration. The dialyzer comes with a chamber and two caps. Membranes are sold separately. Harvard Apparatus Ultra-Fast DIAYLZERS™ support a broad range of membranes with molecular weight cut offs of 100, 500, 1K, 2K, 5K, 10K, 25K, 50K, 100K and 300K Daltons. The new reusable sample chambers are made of PTFE for high sample recovery. The new design provides larger

membrane surface areas for even faster dialysis rates. The units range from 50μl to 1,500μl volume.
