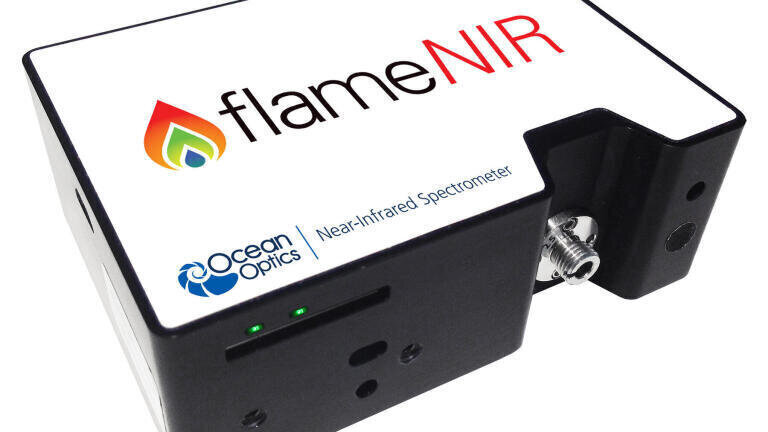

Ocean Optics Expands Flame Spectrometer Line with Versatile Miniature NIR Spectrometer

Flame-NIR puts the power of NIR analysis in a small-footprint instrument

Ocean Optics has expanded its Flame spectrometer family. Flame-NIR delivers powerful near infrared spectroscopy in a compact, affordable instrument. Costing around 75 per cent less than a traditional NIR system, Flame-NIR pairs a high-performance uncooled InGaAs array detector with a small optical bench for spectral response from 950-1650 nm. The spectrometer is ideal for OEM integration as well as lab, industrial and field use in food integrity, biomedical sciences and pharmaceutical applications.

Flame-NIR is sensitive, fast and easy to use. Unlike other lower-cost NIR spectrometers, Flame-NIR uses an InGaAs diode array detector for high sensitivity with concurrent measurement of all wavelengths. It also delivers high thermal stability and low unit-to-unit variation without compromising the flexibility and configurability that are the hallmark of modular, miniature spectrometers. Spectrometers come preconfigured or custom configured, with a replaceable slit design that enables users to adjust resolution and throughput on demand. Complete systems, including accessories such as fibres and light sources, can be configured for under $10,000 (USD).

Flame-NIR benefits from high precision alignment methods that elevate spectrometer performance for a range of demanding applications. Because its design is not dependent on thermo-electric cooling, it has relatively low power consumption. This design, coupled with a small footprint (89.1 mm x 63.3 mm x 31.9 mm) and low weight (265 g), make it convenient for integration into handheld and portable systems.

Operation of Flame-NIR is plug and play. A choice of USB or RS-232 communications, supported by drivers and software, makes it easy to integrate into almost any system. Indicator LEDs show continuous power and data transfer status. Flame-NIR is compatible with Ocean Optics’ range of light sources, optical fibres, sampling accessories and software.
