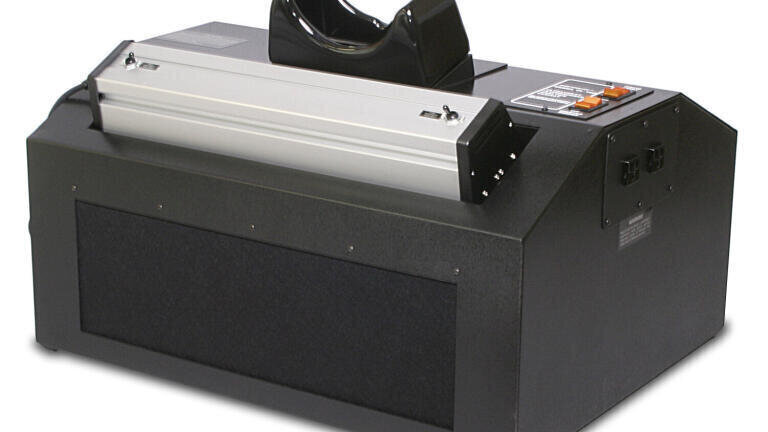

Spacious UV Viewing Cabinet for Gel Analysis

The Spectroline® CL-150 Series UV workstations enable lab technicians to view, analyse and photograph fluorescent samples with both epi-illumination and trans-illumination light sources. A removable bottom panel allows either unit to be placed directly over the transilluminator. The 25-watt white light bulb in the cabinet provides visible illumination for easy sample preparation.

The spacious CL-150 cabinet is able to accommodate large electrophoresis gels and up to four 8 x 8” (20 x 20cm) TLC plates. It can be used with any one or two of 11 different models of Spectroline®

X- and XX-series 15-watt UV lamps (separately available). The CL-151 is identical to the CL-150, but is equipped with the XX-15NF lamp, which has separate 15-watt long-wave (365nm) and short-wave (254nm) UV tubes.

Felt curtains allow easy access to the cabinet interior while blocking out external light. The housing dimensions are 17.5W x 20.25L x 9.75”H (44.5 x 51.4 x 24.8cm). Both cabinets are made out of rugged aluminium with a chemical-resistant polyurethene coating.
