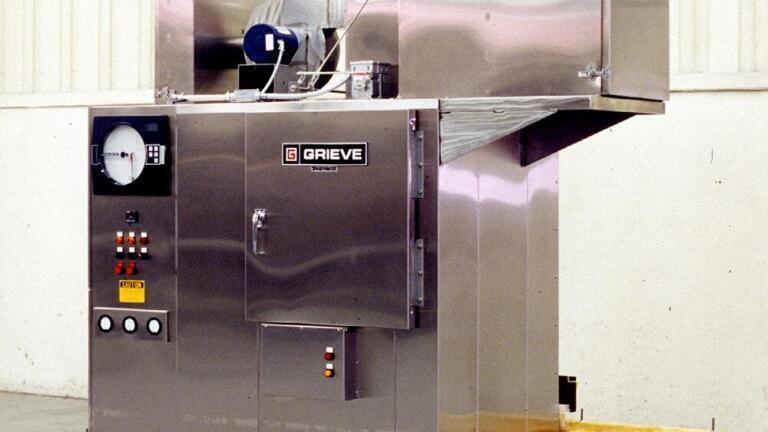

500°F Electric Class 100 Cleanroom Cabinet Oven

No. 962 is a 500°F (257oC) electrically-heated, Class 100 cleanroom cabinet oven from Grieve, currently used for pass-through depyrogenation of glassware. Workspace dimensions measure 24”W x 36”D x27”H. 10KW installed in Incoloy-sheathed tubular elements provide heat, while a 600 CFM, 3/4-HP recirculating blower delivers horizontal airflow to the workload.

This cleanroom oven features 4” insulated walls, a Type 304, 2B finish stainless steel exterior with 1/2” inside radiused corners and all interior seams are welded, ground and polished. The stainless steel exterior with #4 brushed finish has continuously welded seams. The unit has single access doors, front and rear.

No. 962 from Grieve includes a red pilot light to indicate when the oven’s opposite side door is open, solenoid-operated door locks and 650 CFM intake pressurising blower. Also onboard are a 24” x 24” x 6” thick HEPA fresh air filter with 2” prefilter, a 24” x 24” x 6” thick stainless steel, high temperature HEPA recirculating filter, plus a minihelic pressure gauge and DOP validation port across each set of filters.

A digital programming and recording temperature controller activates the dampers and locks the access doors during a cycle. A recirculating blower airflow safety switch turns off the blower and heat whenever a door is opened.
