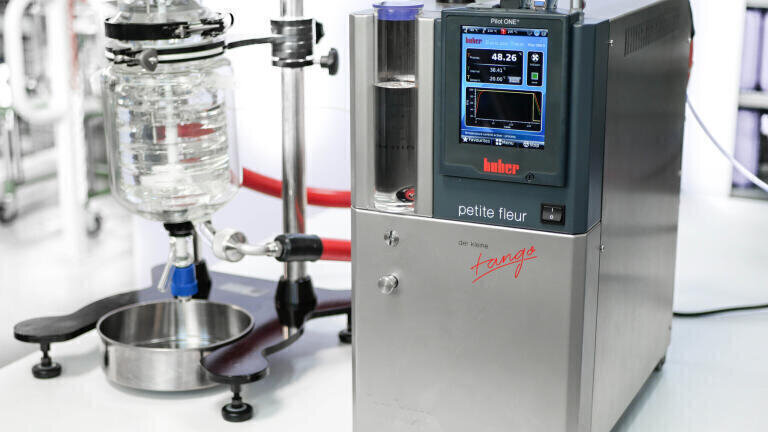

Compact process thermostat for efficient temperature control for laboratory applications

The Huber Petite Fleur models are the smallest dynamic temperature control systems in the Unistat range. They are designed for highly accurate temperature control of small research reactors. As all Unistats, the Petite Fleur models have unique thermodynamic properties.

The Petite Fleur models reach operating temperatures of -40 °C to +200 °C and offer a refrigeration capacity of 480 W (with full pump capacity acc. to DIN 12876). With a capacity of up to 25 l/min, the circulation pump provides for optimum heat transmission. Delicate glass reactors are protected from damage with the soft start-up, and changes in the viscosity within the fluid circuit are compensated for.

The Petite Fleur is equipped with the brilliant 5.7" touchscreen controller Pilot ONE and the E-grade "Professional" extended functionality. This means that the Petite Fleur comprises by default all functions required for demanding temperature control jobs – such as TAC cascade control, programmer, graphic display, calibration programs, and USB, Ethernet and RS232 interfaces.

To demonstrate the performance of the Unistat range over 200 case studies have been carried out. They show the Unistats unique ability to adapt to process requirements, offering precise stability and control.
