S6 JAGUAR
Accurate Analyses of Additives and Contaminants in Lubricating Oil –ASTM D6443 compliant!

Mar 05 2020 Read 633 Times

Author: Kai Behrens on behalf of Bruker AXS

Free to read

Articles are free to download. Unlock the article to be shown more content, graphs and images.

Unlock

Engine and lubricating oils are inevitable for most motors and engines, ensuring proper performance and lifetime. Lubricating oils can be tuned to perfection for specific applications and engines.
The properties and performance of lubricating oils depend significantly on the additives (e.g., Ca, Zn, P, S) as well as on unwanted contaminants (e.g., Cl, which can cause corrosion). Certain wear metals, such as copper (Cu), can indicate wear in
an engine. Thus, reliable determination of additives, contaminants, and wear metal concentrations is important to use additive compounds economically and to optimize the oil and engine performance and lifetime.
This report demonstrates the outstanding capabilities of the wavelength-dispersive X-ray fluorescence (WDXRF) benchtop spectrometer S6 JAGUAR to analyze lubricating and engine oils. X-ray fluorescence (XRF) combines ease-of-use and low cost of operation with excellent accuracy and precision.

S6 JAGUAR – A Powerful Benchtop System with Full WDXRF performance

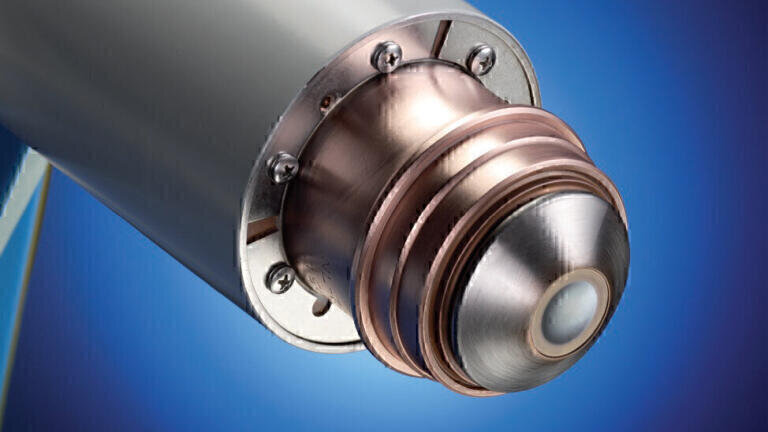

The WDXRF spectrometer S6 JAGUAR is equipped with Bruker’s 400 W HighSense™ X-ray tube (Figure 1). This makes the S6 JAGUAR the most powerful benchtop WDXRF unit on the market! Modern software and state-of-the-art hardware enable best-in-its-class analytical performance. The S6 JAGUAR achieves outstanding sensitivity for a wide range of elements (F to U) and the various configuration options allow us to optimize the system for your needs.



S6 JAGUAR – Ready for Petrochemical Applications

• Dedicated liquid cups for simple and rapid loading of oil
samples (Figure 2)
• SampleCare™ technology, protecting critical system components for low maintenance (Figure 1)
• (optional) Cup-in-cup technology for additional protection
• Intuitive software SPECTRA.ELEMENTS with “onebutton” solutions
• Sturdy design and robust, high quality components
for long lifetime
• (optional) Ergonomic TouchControl™ display for operation
w/o PC peripherals



Calibration and Analyses

We used 22 lubricating oil certified reference materials (CRMs) for the calibration; including one blank. The compositional range is listed in Table 1. The analytical conditions and the crystal setup were optimized for lubricating oil analysis (Table 2). The Ge(111) analyzer crystal significantly improves the sensitivity for S, Cl, and P in oil, when compared to a conventional PET crystal. The XS-55 analyzer crystal provides optimal performance for Mg analysis.



Advantages of XRF

XRF sample preparation and analysis is simple and cheap, when compared to alternative wet-chemical methods, such as atomic absorption spectrometry (AAS) or inductively coupled plasma optical emission spectrometry (ICP-OES). The latter require skilled operators and consume pricy and/or hazardous chemicals and accessories (see Figure 4). When using the S6 JAGUAR for your oil analysis, you can also decrease the time from sampling to result, considering the required dilution step for AAS and ICP-OES, which adds another benefit to the XRF side. In contrast to AAS and ICP-OES, a simple one-time calibration makes the S6 JAGUAR ready for your application. Only occasional analysis of a drift correction sample is required: No re-calibration necessary!



Norm Compliance, Repeatability, Precision and Accuracy

The compliance of the S6 JAGUAR with the lubricating oil norm ASTM D6443 is illustrated in Figure 5. Clearly, the S6 JAGUAR meets the requirements easily! A repetition test demonstrates the exceptional stability and accuracy of the S6 JAGUAR for trace element analyses in oil (Table 3). The samples were unloaded and reloaded between the measurements.



Conclusion

This report highlights the outstanding performance of the S6 JAGUAR for lubricating and engine oil analysis. The system easily fulfils the requirements for the WDXRF oil norm ASTM D6443. The S6 JAGUAR brings several advantages to your lab, when compared to AAS and ICP-OES; including lower costs of operation and minimal calibration effort. The S6 JAGUAR enables time-efficient and accurate monitoring of additives, contaminants, and wear metals in lubricating and engine oils. When installed at oil-production plants, you can easily test the quality of incoming materials and optimize the use additives. Accurate compositional monitoring of used oils from your engines allows you to forecast potential part failures to minimize downtime and maintenance costs.
