Transient Mass Spectrometer provides for Fast Event Gas Analysis Studies

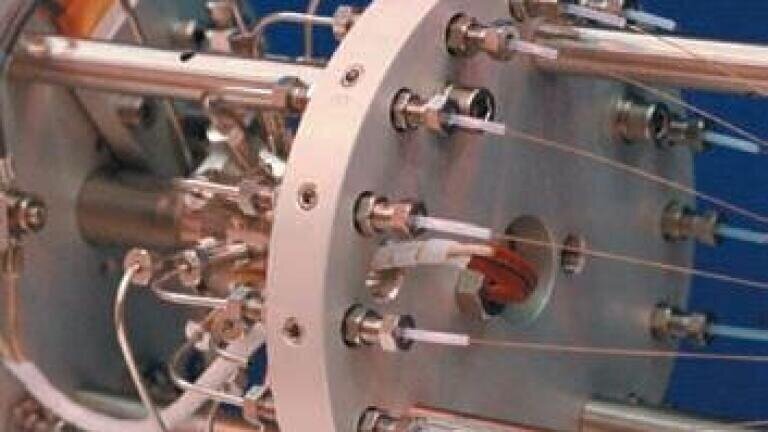

Hiden Analytical introduce their Transient MS system specifically designed for the analysis of fast transient gas events at pressures near atmosphere. The compact benchtop system is founded on the Hiden HPR-20 QIC series gas analysers and features a purposedesigned fast response capillary inlet and the HAL/3F PIC mass spectrometer with pulse ion counting detector.

The combination enables inlet system response times of less the 150 msec with measurement speeds of up to 500 data points per second over an entire 7 decade dynamic range.

The system monitors species with molecular weights to 300 amu, with higher mass ranges available for specialist applications.

The MASsoft control and data acquisition program provides ease of operation with integral

calibration routines together with user-programmable template files for automatic operation of routine analyses. Multiple I/O’s permit integration of external parameters such as temperature or flow rates, and control of external equipment with species-specific pressure level sensors.

Application areas include pulsed gas experiments for catalyst characterisation, surface reaction and reduction studies, respiratory analysis, process control and, with high-speed rotating multiport valve, spacial gas distribution measurement as demonstrated in the award-winning (R&D 100 Awards) Hiden Spaci-MS system.
