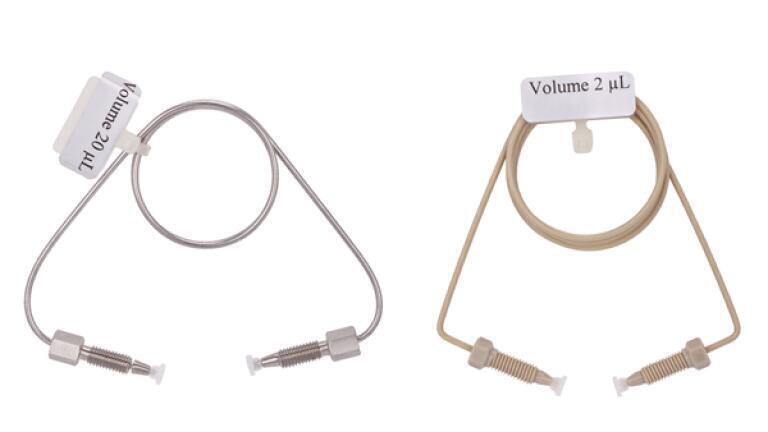

PEEK and Stainless-Steel Sample Loops

Inject with accuracy and reproducibility with the economical PEEK and Stainless-Steel sample loops from MicroSolv.

PEEK sample loops available with volumes up to 20μl are manufactured of tubing with the closest tolerance (OD and ID: +/-0.025 mm) available; the Super-T™ PEEK tube, which guarantees the smallest volume deviation possible thus providing better results.

Stainless Steel sample loops use tubing that is welded and annealed. The tubing is tested according to EN 10204/3.1B and is cut using EDC (electronic discharge) techniques to achieve square and burr-free end for zero-dead volume connections. Tolerances for SS tubing and capillaries are +/- 0.025mm for both OD and ID. Many different volumes may be available upon request.
