• Cleanroom Conditions at your Laboratory Workbench
    The pipetting robot ‘Liquid Handling Station flow’ from Brand allows you to set up a small cleanroom right inside your lab.

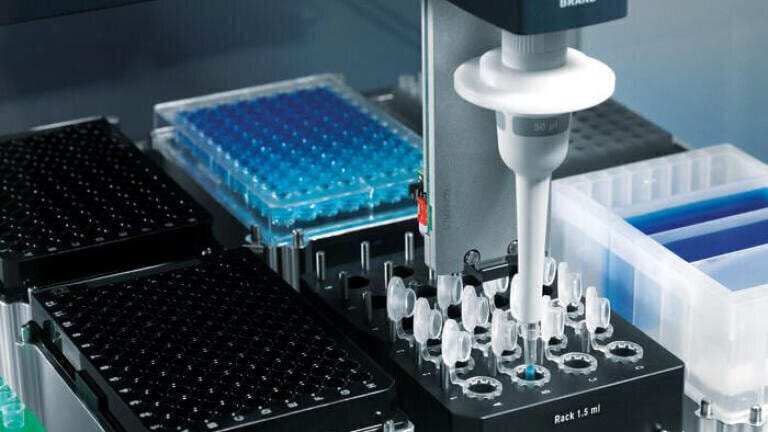

  • The Brand pipetting robot saves space in the lab.

Clean Room

Cleanroom Conditions at your Laboratory Workbench

Mar 22 2022

Pipetting liquids without introducing foreign particles or microorganisms is a core task at many laboratories, for example when preparing samples, packaging media and buffers, or performing microbiological analyses using non-pathogenic microorganisms. The pipetting robot ‘Liquid Handling Station flow’ from Brand allows you to set up a small cleanroom right inside your lab.

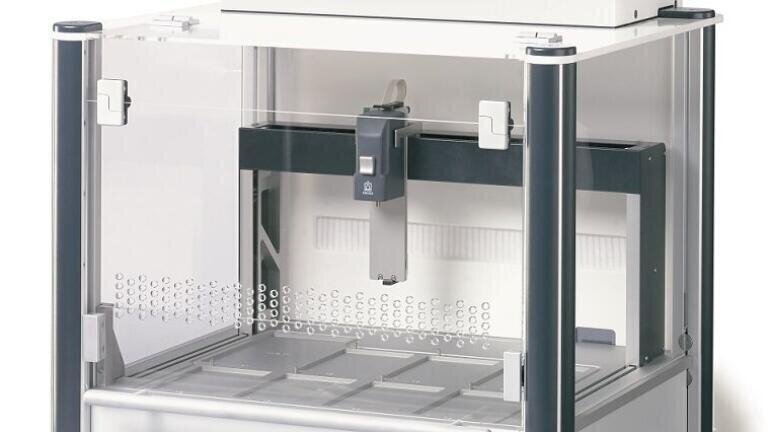

The newly developed FlowBox of the Liquid Handling Station flow provides cleanroom conditions at your workbench. The HEPA filter (HEPA 14 according to DIN EN 1822) cleans the intake air, then directs it horizontally in a laminar flow across the workplaces inside the Liquid Handling Station. With the door closed, the air inside the cabinet is replaced approx. 260 times per hour (at a volume flow rate of 22 m3/h), and exits through special openings in the front door. The system meets cleanroom requirements of ISO 14 644-1 (Class 5) and GMP Annex 1 (Class A) in the work area and thus protects the samples from airborne contamination.

In addition, the software performs a three-minute air flushing routine before starting the pipetting process, leaving no measurable particles (particle sizes 0.5 μm, 0.7 μm, 1.0 μm, 3 μm, and 5 μm) inside the cabinet. During the pipetting procedure, the air flow is controlled automatically and increases to 29 m3/h when the front door is opened, preventing unfiltered air from entering the workplace of the Liquid Handling Station.

It goes without saying that the Liquid Station flow offers the same benefits as the popular Liquid Handling Station. Both versions of the Brand pipetting robot save space in the lab and are very easy to operate. With just a few mouse clicks you set up your own, customised method.
