Discover new possibilities of process visualisation with fingertip control

Experience our new Evoqua ultrapure water equipment series for the production of type 1 water.

We provide the best solution for all your water quality demands and applications in the laboratory.

Discover the new possibilities of our process visualisation – with a fingertip, all information at one glance.

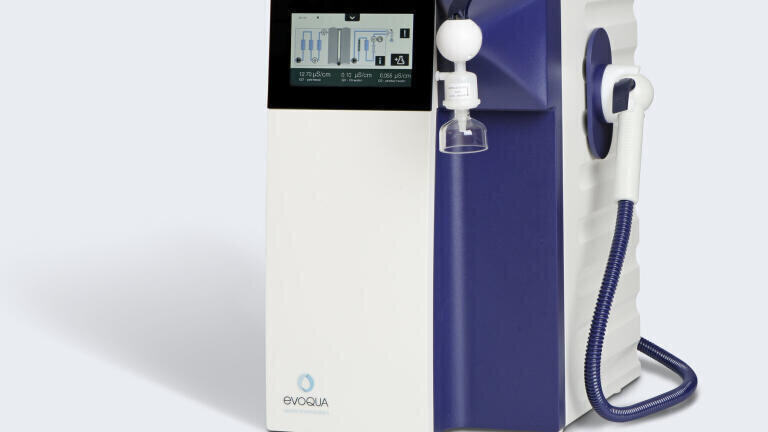

The Ultra Clear™ TP bench top/wall mounting systems are designed for maximising space saving installations. Each system is equipped with economical state-of-the-art purification technology.

Water quality with a resistivity of 18.2 MΩcm and a TOC level between 1-3 ppb far exceeds all reagent water quality standards including: ASTM Type 1, CLSI and ISO 3696 Type 1.

All systems that include UV oxidization, TOC monitoring (TM) and ultrafiltration produce the highest possible water quality. These units deliver RNase-, DNase- and DNA-free water.

Systems are also capable of producing purified water with endotoxin levels of < 0.001 EU/ml.

The dispense flow rate of ultrapure water is up 2 l/min. The high resolution display indicates the water conductivity in µS/cm or resistivity in MΩcm with the corresponding water temperature.

Cartridge changes are very simple and fast due to quick and easy access to the replacement parts.

A single UV bulb is used for the oxidization of organic compounds and TOC measurement.

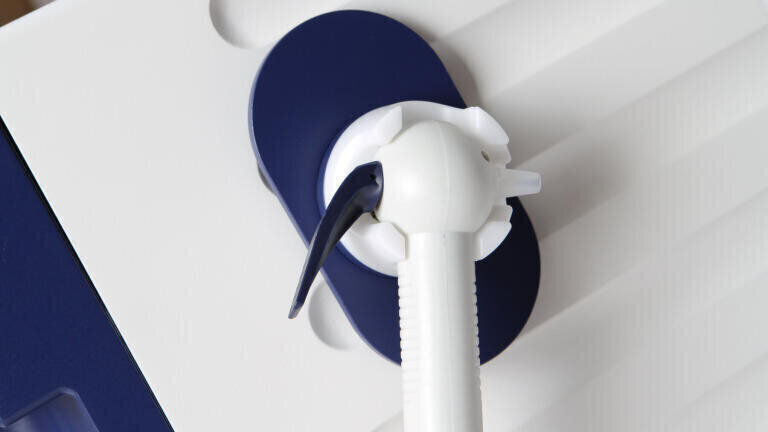

A built-in automatic self-cleaning/sanitisation mechanism extends the life of the ultrafiltration module. Pure water dispensing is made easy by simply activating the valve lever. A continuous flow of pure water is achieved by simply placing the draw-off lever in an upright position.

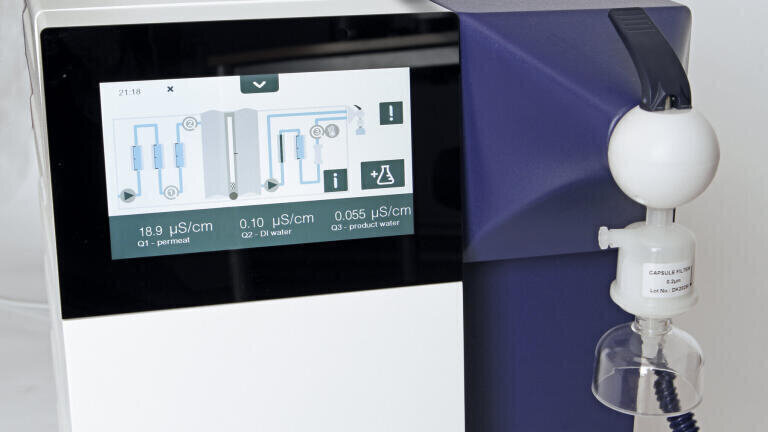

The new Interface Panel with touch control enhances your daily work

• Self-explanatory functional diagram (detailed information about all components)
• Intuitively operable
• High Resolution 7“ Touch-Display
• Easy to clean glass surface

Why use a dictionary if the UCTP can speak your language!

• Plaintext possible many languages
• Display of all language characters

Why pay extra for a flexible dispense systems? If you have them already on the UCTP!

• Second dispenser optional
• User-friendly (left or right sided) mountable
• Simultaneous water extraction at both dispensers possible
• Easy to use and highly accurate volume removal
• Different sterile filters available

Why take the rist of loosing data when the system can save these for years?

• Easy data transfer via USB stick or SD memory card
• Nearly unlimited data recording and logging function
• Adjustable recording interval of all important water parameters

Why guess the system status? When the UCTP shows you!

• All quality parameters at one glance
• Operating states available at your fingertips

No guessing when to change consumables, UCTP tells you when!

• Consumptions are available
• Direct reading of module capacities

Why order the service when you can do almost everything yourself?

• High user and service friendliness
• Easy module exchange via quick coupling
• Easy UV lamp replacement through hinged rear wall

Why waste energy, when the UCTP can save it!

• Intelligent Power Management
• Low power consumption by intermittent control of the pump
• Low heat input
