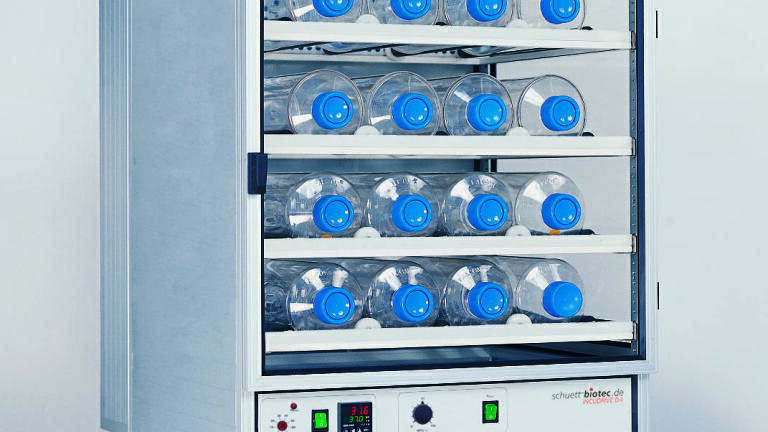

    INCUDRIVE D-I for up to 16 Bottles

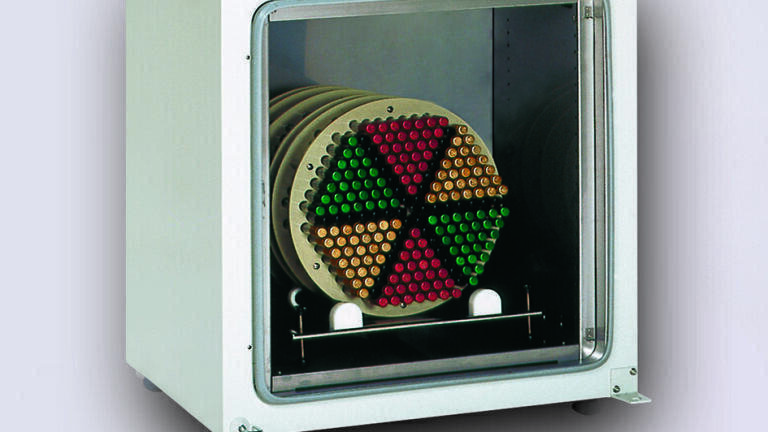

  • INCUDRIVE S with drive-unit

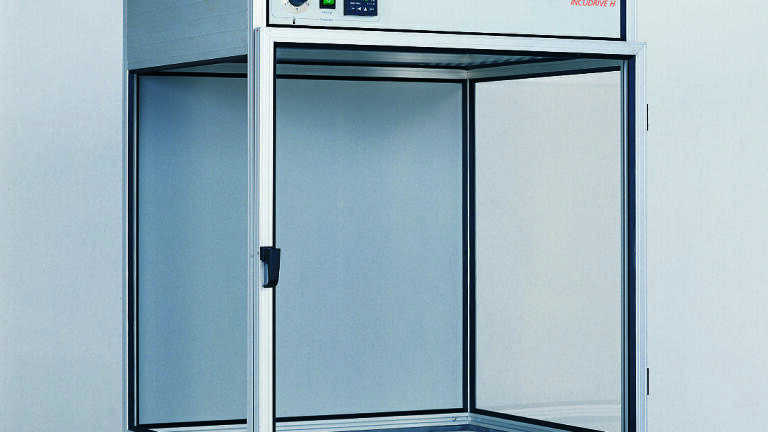

  • INCUDRIVE H Incubating hood

Laboratory Products

Optimise your Production Yield for Vaccines Antibodies Recombinant Proteins

May 11 2017

INCUDRIVE 90 - Roller Bottle Incubator

High productivity

  • Temperature stability of +/- 0.7°C inside each one of all 90 bottles, all cells in the incubator from top to bottom benefit from identical growth conditions
  • High temperature recovery rate following door-opening through use of heavy-duty fan system
  • Digital speed control 0.1 to 2 rpm (other rpm on request) with reproducibility 0.1% to always work at your peak production rate
  • One-belt drive mechanism guarantees smooth bottle rotation for optimal supply of oxygen/nutrition and reduces shearing forces for best growth of adherent and sensitive cells

High flexibility

  • For 90 Roller Bottles (2L) or 45 Long Expanded Surface Roller Bottles (4L)
  • Construction on wheels/castors for ease of putting into operation, movable by one person for ease of relocation and laboratory decontamination
  • Fits through any laboratory door
  • Simultaneous test runs with different cell material in selected bottles

High safety

  • Validated for GMP environment
  • Monitoring/Controlling via RS 485 interface
  • Low risk of cross-contamination due to sealed incubator body and the use of individual bottles/tubes
  • High quality materials such as silicon rollers, stainless steel ball bearings and forced all-axle drive guarantee smooth movement of all 90 bottles and increase longevity of the incubator

Optionally:

  • CO2 supply
  • Various alarm system (temperature, speed, CO2 etc.)
  • Battery back-up for up to 72 hours
  • Bottle Lifter for comfortable loading and unloading of all bottles
  • simultaneously, 90 bottles in one step – in just a few seconds
  • IQ/OQ validation
  • FAT/SAT available on request

EU origin with metric components.

Further models available…
