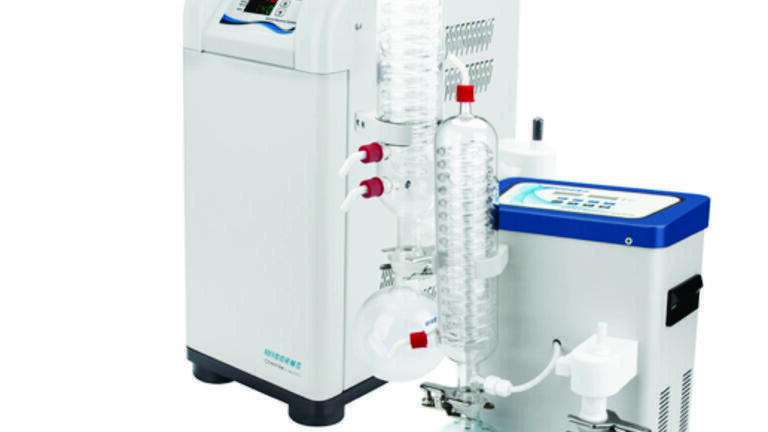

Next Generation Solvent Recovery System

Wiggens’ innovative technology has been used to produce the new generation solvent recovery system CSC series which has a wide range of applications, such as, evaporation pumping of gases and vapours in chemical and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens.

At the heart of these units is the new generation of lightweight, frequency conversion chemical resistant vacuum pumps. Featuring a compact design, they can adjust the speed of the diaphragm pump with the frequency conversion motor and controller and control the vacuum pressure more accurately. The controller automatically changes the PID value according to the artificial intelligence logic algorithm, accurately adjusting the motor speed and stabilising the precise vacuum degree. The maximum flow rate of this series extends to 95L/min, and the maximum vacuum is up to 1mbar. All parts in contact with gas and condensate are made of high-quality PTFE. The separator at the inlet is made of high quality glass with protective coating and retains particles and liquid droplets. The waste vapour condenser at the outlet is highly efficient and compact. The condenser enables nearly complete recovery of solvents, efficient recycling and active protection of the environment.
