Precision Thin Films Analysis Utilising Spectroscopic Reflectometry

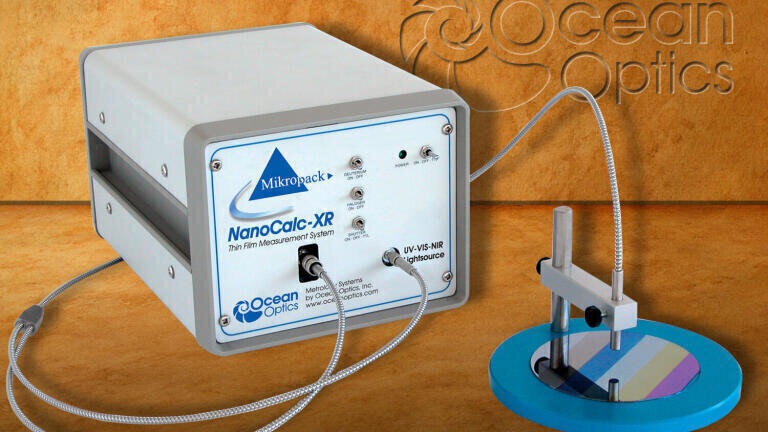

Ocean Optics’ NanoCalc systems utilise spectroscopic reflectometry to accurately determine optical thin film thicknesses for consumer, semiconductor, medical and industrial applications. Customer-designed and new application-ready preconfigured NanoCalc models make it easy to select the optimum system for deep UV to NIR wavelength measurement needs.

NanoCalc systems are available for a range of wavelength, sampling method and optical layer thickness requirements (from 1.0nm to 250µm). Users can select among four standard models between ~200-1700nm and combine them with software, reflection probes, optical fibres and various accessories. For applications in the Visible (400-850nm) or UV-Visible (250-1050nm), users have the added convenience of selecting preconfigured systems comprising the NanoCalc, a reflection probe and sampling stage, a calibrated Si-SiO2 5-step reference wafer and software that analyses up to 10 optical layers.

For more demanding applications, NanoCalc systems are available with an extensive range of add-on software, optical fibres and metrology accessories such as mapping stages and adapters for microscopes and micro-spot focusing objectives.

NanoCalc systems are especially useful for applications such as transmission and reflection measurements of anti-reflective and hardness coatings, amorphous silicon on solar panels, OLED displays, determination of photoresist layers for photomasks and testing the optical properties of optical coatings.

Custom NanoCalc systems are also available, offering additional user control for in situ, multipoint or vacuum measurements. Users have flexibility in their choice of fibre assemblies or reflection probes. Also, users can control NanoCalc functions from other software or operate mapping stages with software add-ons including remote, online, mapping and multi-layer options.
