Multi-Reflection ATR Accessory

Feb 06 2013

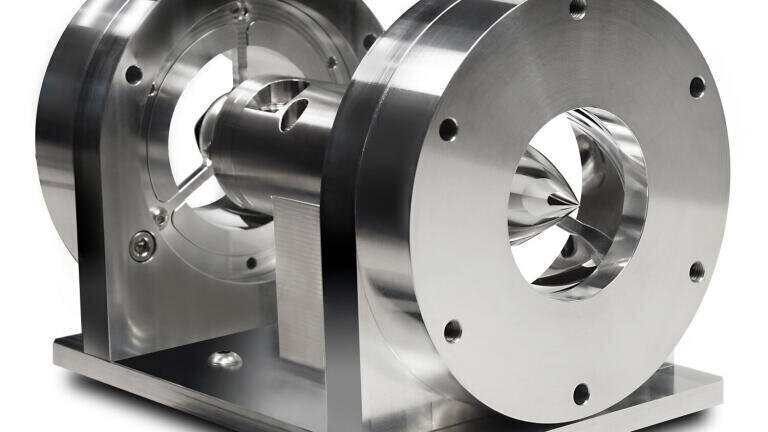

The Pike Technologies JetStream is a unique ATR accessory that is optimised for analysis of liquids in static or dynamic modes under ambient or variable pressure conditions. The accessory design features a cylindrical ATR crystal encased in a heavy-duty stainless steel body. The crystal’s geometry has been carefully chosen to maximise its performance. The crystal generates 12 reflections along its body with throughput sufficient to perform high sensitivity measurements. JetStream’s compact design employs a pair of transfer optics directing the infrared beam to one end of the crystal. A similar pair of optics directs the beam exiting the accessory to the spectrometer’s detector. The sample enters and exits the measurement chamber via Swagelok® ports and completely surrounds the crystal. This assures efficient sampling and very good reproducibly. The JetStream Accessory is available for all brands of FTIR spectrometers.

Pike Technologies, established in 1989, became a primary source for spectroscopy accessories and applications worldwide. Products include attenuated total reflectance (ATR), diffuse reflectance, specular reflectance, integrating spheres, polarisation, IR microscope, beam condensers, remote sensing, and a complete line of transmission sampling accessories. Many of these products are available with optional heating and automation for increased sampling speed and productivity. Pike Technologies, Inc also offers design and consulting services for development of specialised and custom products for a wide range of spectroscopy applications. Pike products are compatible with all major brands of spectrometers.
