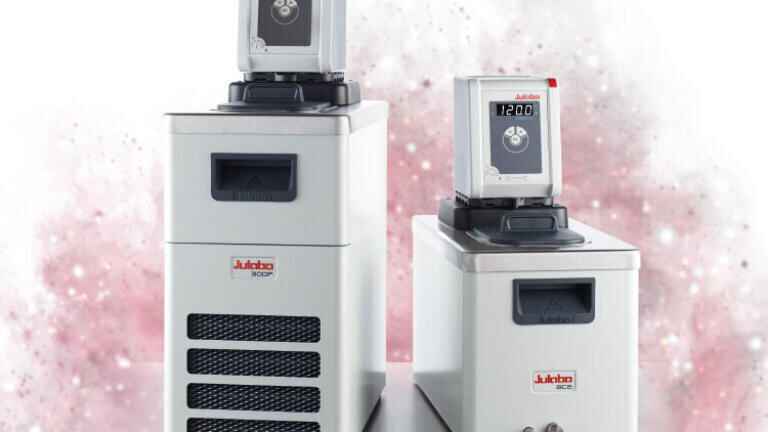

Function Extension of the CORIO CP Models

The “High- and Low-temperature Warning Function” extension in all CORIO CP models is JULABO’s answer to customer requirements regarding the protection of sensitive samples in temperature control applications. If the actual value deviates from the specified setpoint and exceeds/falls below a preset temperature range, the user receives a visual and acoustic signal as well as a warning message via the digital interface. The temperature control process is not interrupted. If the actual temperature returns into the target range, the warning message disappears. To avoid false warnings during the heating phase, monitoring is only carried out when the actual temperature has been maintained for more than three consecutive seconds.With immediate effect, all models of the CORIO CP series are equipped with this function ex works at no additional cost. A software update is available for older CORIO CP devices.

With the new CP models, the CORIO family has added powerful heating immersion circulators, refrigerated circulators, and heating circulators. The extended temperature range of -50°C to +200°C and a higher pump capacity of 27 l/min or 0.7 bar make the CORIO CP the ideal partner for the safe temperature control of simple external applications. In addition, the CORIO CP offers 3-point Absolute Temperature Calibration (ATC3) and guarantees the reliable compensation of temperature deviations even when used in larger baths.

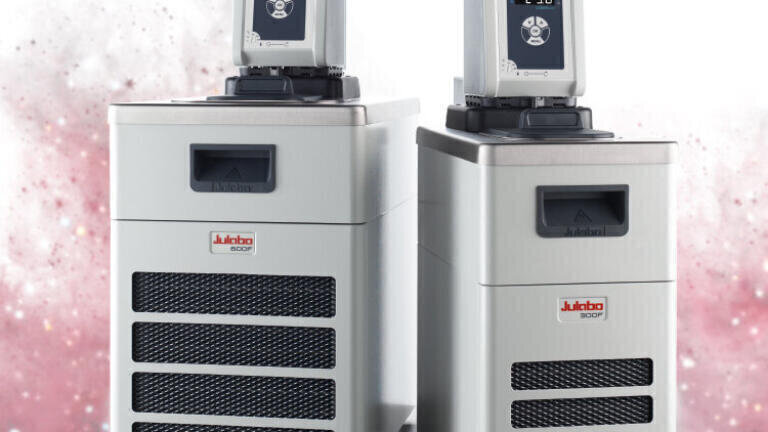

Refrigerated Circulators of the New CORIO CP Series

The refrigerated circulators of the new CORIO CP series provide more robustness, more reliability, and more advantages. They are ideal for all standard tasks and routine work in your laboratory and underline JULABO's ambition to create pioneering technologies for modern users. Outstanding functionality, ergonomics, ease of use, and a modern design are available in user-oriented performance categories.

CP-200F, CP-201F, and CP-300F Models

Refrigerated circulators CP-200F, CP-201F, and CP-300F have a bath opening/bath depth of 13x 15/15 cm. Thanks to the optimized design of the cooling coil, even the smaller models score with more space in the bath and thus offer a larger filling volume of 3 to 4 litres. With a temperature range of -20°C to +200°C or -30°C to +200°C, the models guarantee short heat-up and cool-down times.

CP-600, CP-601F, and CP-900F Models

The CORIO CP-600F features a bath opening/bath depth of 22 x 15/15 cm, the CP-601F 22 x 15/20 cm, and the CP-900F 26 x 35/20 cm. Thanks to the optimised design of the cooling coil, the models offer more space in the bath with an enlarged filling volume of 5 to 7.5, 8 to 10, and 21 to 30 litres. With a temperature range of -35°C to +200°C or -38°C to +200°C, the models guarantee short heat-up and cool-down times.

CP-1000F and CP-1001F Models

The CORIO CP-1000F offers a bath opening/bath depth of 18 x 13/15 cm, and the CP-1001F of 35 x 41/30 cm. Thanks to the optimised design of the cooling coil, the models offer more space in the bath with a larger filling volume of 5 to 7.5 and 42 to 56 litres. With a temperature range of -50°C to +200°C or -38°C to +100°C, the models guarantee short heat-up and cool-down times.
