MAGIO - Powerful Temperature Control with High-end Quality

With the new MAGIO series, JULABO extends its product range with bridge mounted circulators, refrigerated and heating circulators, as well as heating circulators in high-end quality. The devices were developed with future-oriented technologies, especially for the increasing temperature requirements in laboratories and industry. They are manufactured to the highest quality standards in Germany.

With the power pressure/suction pump with output values of up to 31 l/min or 0.92 bar (pressure) and -0.4 bar (suction), the MAGIO devices offer the most powerful pump in its class. They are, therefore, ideally suited for particularly demanding external temperature applications. The pressure/suction pump is continuously adjustable and can, therefore, be easily adapted to pressure- or volume-sensitive external applications.

Modern Functionality

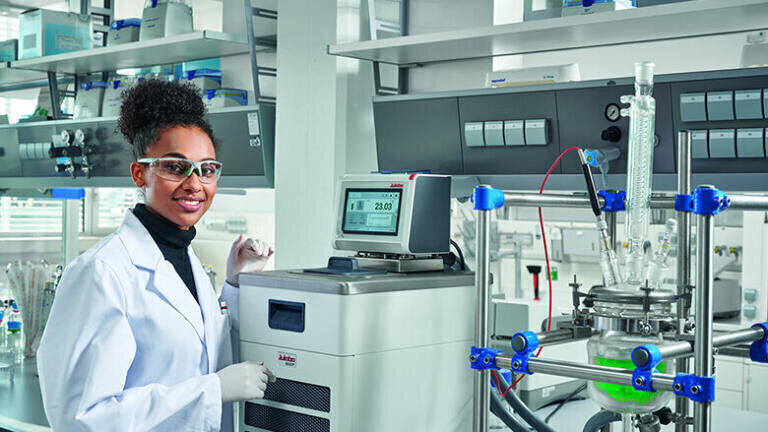

The high-resolution, modern TFT touch display offers a multilingual user interface and shows all important information at a glance. The operating concept of MAGIO circulators is simple, intuitive, and though out well. Three pre-defined, generous main screens clearly show data and graphics with different application focuses. The self-explanatory menu navigation is arranged according to relevance in the daily work. All display functions can be easily operated at the touch of a finger. The support function assists with further detailed questions at any time. For ease of use, all operating elements and safety functions can be operated from the front. The mains switch on the top of the circulator switches the circulator and refrigeration unit on and off simultaneously.

Modern interfaces allow straight-forward remote control, practical data management, and integration into process structures. An external Pt100 connection, USB, RS232, and Ethernet are permanently integrated, analog interfaces are available as an option. The integrated programmer offers the automatic running of temperature-time profiles for an optimized workflow.

MAGIO Refrigerated Circulators

Like all circulators of the MAGIO series, the refrigerated circulators are characterised by their premium quality and high performance combined with intuitive operation. Whether in basic research, material testing, or technical systems – the MAGIO refrigerated circulators offer high-tech solutions for demanding customers.

MAGIO Bridge Mounted circulators

The adjustable bridge allows the circulators to be used with any bath tank with a filling volume of up to 100 litres and a bath width of 31 to 66 cm. The immersion depth of the circulators amounts to 200 mm (MX-Z) or 150 mm (MS-Z).

MAGIO Heating Circulators

The powerful all-rounders focus on the precise temperature control of external applications. Furthermore, samples can also be temperature-controlled in the internal bath of the high-quality insulated, closed bath tanks. The devices are available in various sizes, with a filling volume of 3 to 26 litres.
