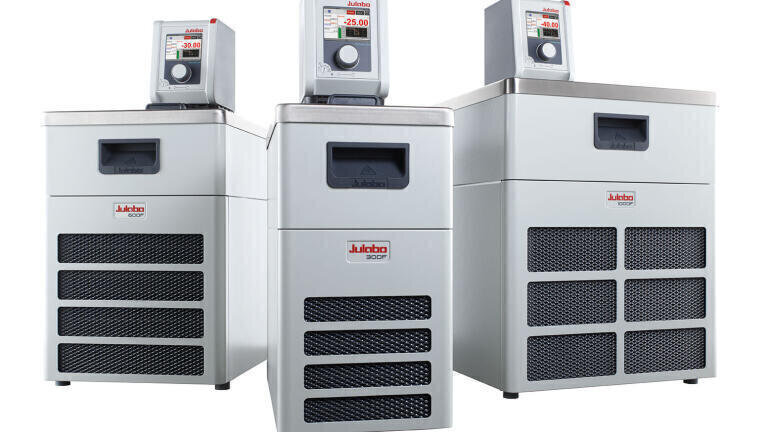

New Temperature Control Technology for Demanding Applications

Immersion circulators, heating circulators, and refrigerated circulators from the new DYNEO series incorporate pioneering technology with high standards for accuracy, cost efficiency, ergonomics, and precision in temperature control. With their high heating and cooling capacities and forward-facing control, DYNEO units are designed for modern laboratories. DYNEO series units are user-focused, with a unique rotary knob for a new, modern method of control. Conveniently located on the front side of the circulator head, it provides direct access to the menu for control of all functions and settings. Unlike similar instruments with a touch display, the rotary knob gives the user tactile verification of each completed action. DYNEO’s sophisticated yet straightforward operating concept makes it easier to quickly access the most frequently used functions. Their robust and bright display is suitable for industrial environments and easily readable even from a distance. With a large selection of models, such as immersion circulators, refrigerated circulators, and heating circulators, for use with a bath or in a closed loop, DYNEO is ready to handle virtually any temperature control task.

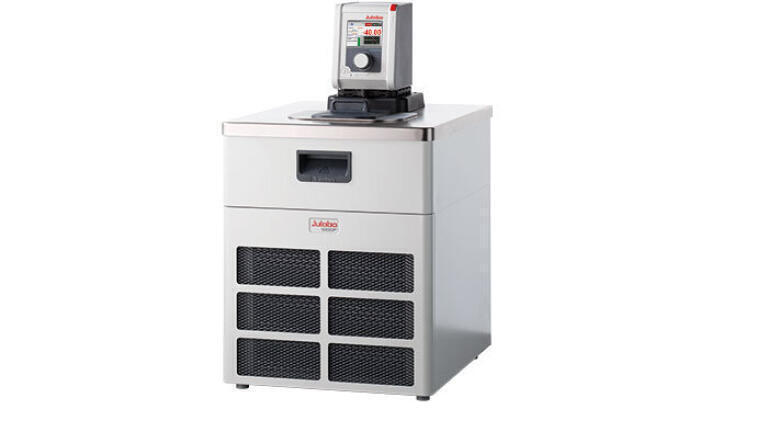

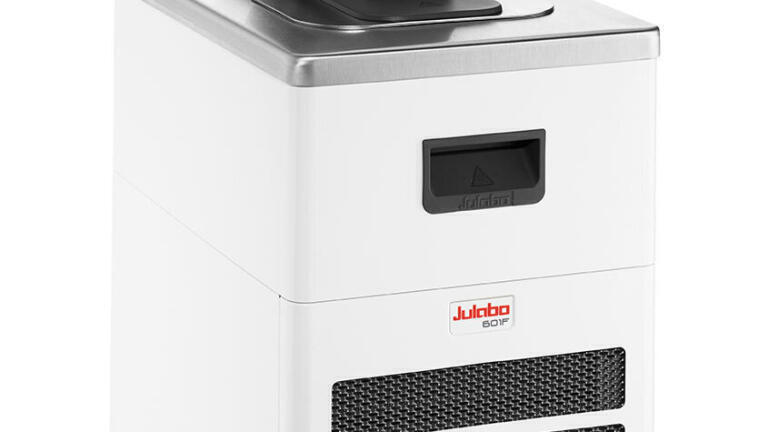

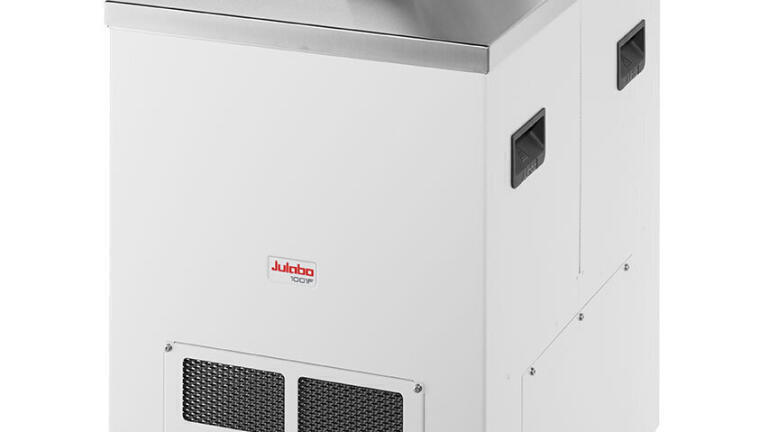

Powerful refrigerated circulators have a temperature range of -50°C to +200°C with a heating capacity of 2 kW. Pump capacity of the DD models is 22 l/min with pressure of 0.6 bar. The cooling machines operate precisely and reliably even at elevated ambient temperatures up to +40°C.

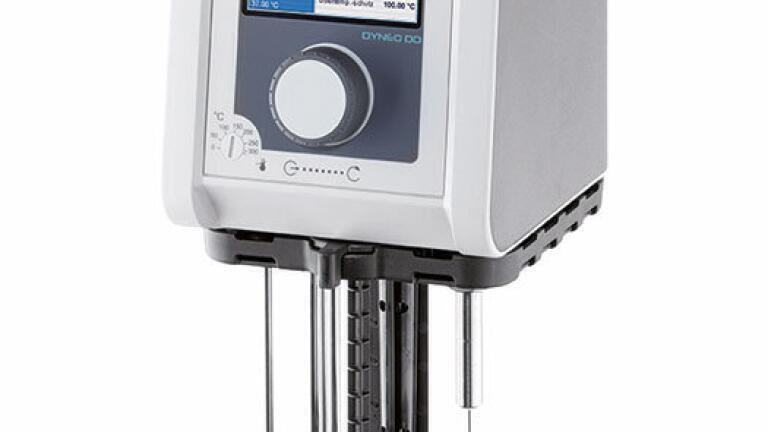

DYNEO immersion circulators offer the greatest flexibility. They are delivered with a stable and robust bath clamp and can be mounted on any container up to 50 litres in volume. Immersion circulators are used for internal temperature applications and cover a working temperature range of +20°C to +200°C.

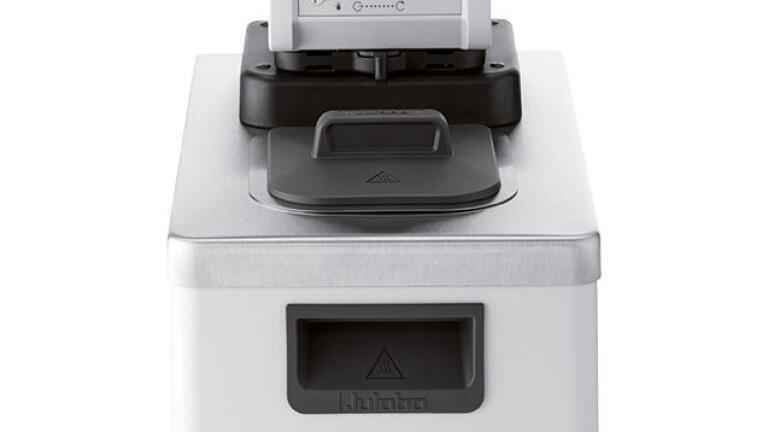

DYNEO heating circulators for internal and external applications are available for applications of 4 to 26 litres and are equipped with an integrated cooling coil for counter-cooling.

The DYNEO DD advantages at a glance:

• Internal and external applications
• Easy to switch between internal and external circulation
• Temperature range -50°C to +200°C
• Large colour TFT display
• Easy to operate using the state-of-the-art turn & push controller
• Multi-lingual user interface
• Integrated programmer
• Heating capacity 2 kW
• USB interface
• RS232 interface (option)
• Analogue interface (option)
• Class III (FL) according to DIN 12876-1
• Continuously adjustable, powerful pressure pump, flow rate 22 l/min, flow pressure 0.6 bar
• External Pt100 sensor connection
