• Simplify your particle shape and size analysis of suspensions and emulsions

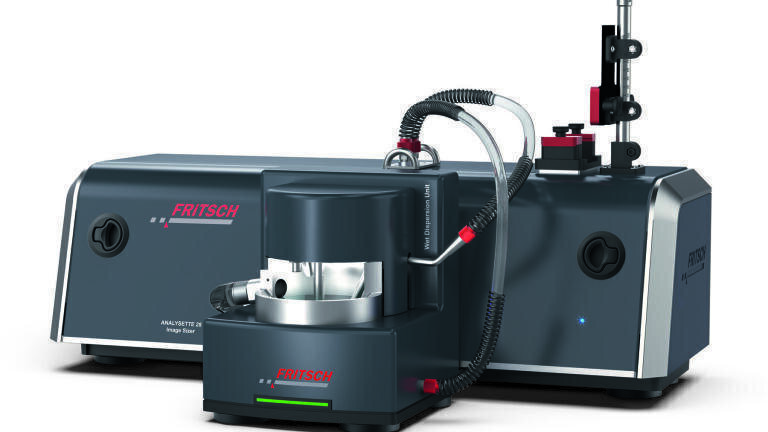

    Particle Sizer ANALYSETTE 28 ImageSizer with NEW automatic wet dispersion unit

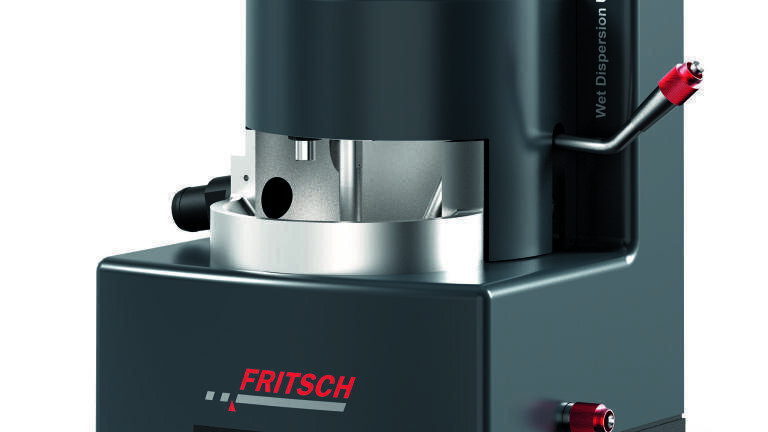

  • NEW powerful, practically maintenance-free wet dispersion unit

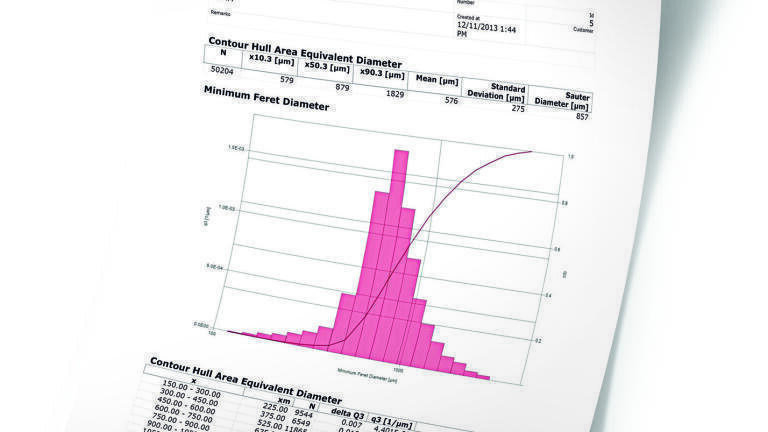

  • Freely configurable report of the measuring results

Laboratory Products

Simplify your particle shape and size analysis of suspensions and emulsions

May 11 2021

The proven Particle Sizer ANALYSETTE 28 ImageSizer makes it possible in combination with the NEW automatic modular wet dispersion system. Ideal for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids. The accurate and reproducible measuring results for both particle shape and size are available in less than 5 minutes.

Easy wet measurement

For perfect dispersion the sample material is fed into a closed liquid circulation system and is pumped with high power through the measuring cell between camera and LED strobe light. The continuously obtained images are the basis for the analysis with a variety of evaluation possibilities.

NEW: Choice of 3 lenses for highest resolution

For wet measurement, choose from 3 different bi-telecentric lenses for optimal adaptation of the whole measuring range from 5 μm to 3 mm to your measuring task. In combination with the powerful industrial camera, they guarantee the highest accuracy of the image of each individual particle always at the same reproduction scale and thus the highest shape accuracy with the greatest possible depth of field.

NEW: Wet dispersion system without dead space

The first fully automatic wet dispersion unit operating completely without valves and moveable seals in the sample circulation system and for emptying the system. That makes it significantly more robust and virtually wear-free. And no difficult to clean dead spaces occur in which soiling can get deposited permanently. A single rinse is sufficient and it is ready to be used again.

Separate ultrasonic box

If you frequently measure sample material that tends to agglomerate, you can additionally connect a powerful ultrasonic box to the wet dispersion unit. It enables an even finer adjustment of the wet dispersion to the respective sample material.

Perfect wet dispersion

A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high-density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.

Easy and fast evaluation via Cloud and Gallery

Even the evaluation of the measuring results is uniquely simple with the ANALYSETTE 28 ImageSizer. The evaluation software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud as well as in the FRITSCH Gallery. You can immediately analyse and evaluate individual selected particles using all available size and shape parameters. Or get a quick overview of the typical particle shape of the analysed sample directly in the FRITSCH gallery.

Experience the FRITSCH particle sizing instruments virtually directly at your workplace and discuss your specific application with our application consultant M.Sc. (Phys.) Maik Paluga and let him answer all your questions regarding particle measurement. Make your virtual consultation appointment now!

Up-dated information on FRITSCH particle sizing technology – from Static Light Scattering to Dynamic Image Analysis.
