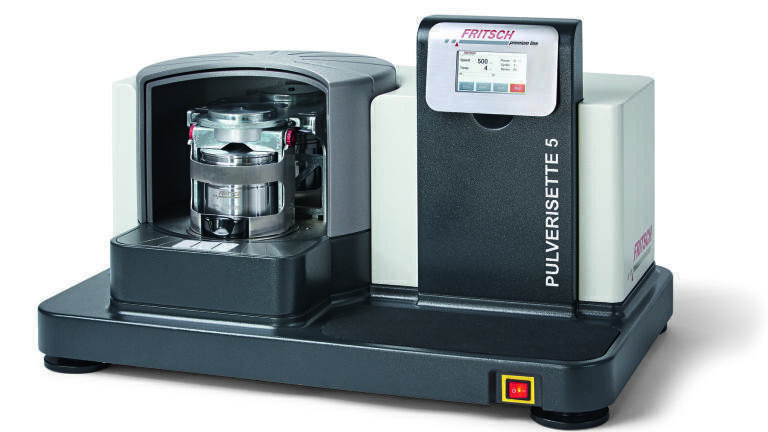

High-performance grinding down into the nano range

The new Fritsch Planetary Mill PULVERISETTE 5 premium line is ideal for fast wet and dry grinding, mechanical alloying, mixing/homogenising of large sample quantities with reliable results down into the nano range with automatic clamping of the bowls by the mill.

Ideal for: hard, medium-hard, soft, brittle and moist samples in the areas of Geology/Mineralogy, Metallurgy, Ceramics, Material research/Mechanical alloying, Nanotechnology, Pharmaceuticals, Chemistry, Biology and Sample preparation for analysis

Your advantages with the Planetary Mill PULVERISETTE 5 premium line :

• Extra strong 2.2 kW drive power and extremely high centrifugal acceleration up to 64g and up to 800 rpm (rotational speed of the bowl 1600 rpm)
• Sample quantities up to 450ml, max. feed size up to 10mm
• Motor-driven ServoLOCK clamping of the grinding bowls
• Safe and user-independent reproducible clamping
• Two grinding stations for grinding bowls 125ml - 500ml volume
• Intuitive touchscreen operation with colour display.

Grinding has never been safer

With the completely brand new ServoLOCK clamping of the grinding bowls and the automatic check of the fastening of the bowls inside the mill, man and machine are optimally protected. In the event of impermissible operating states, the machine blocks the start of a grinding – and if an imbalance occurs it automatically shuts off. It doesn’t get any safer than this. Just insert the grinding bowl – start – done.

FRITSCH premium advantage: Safely guided insertion

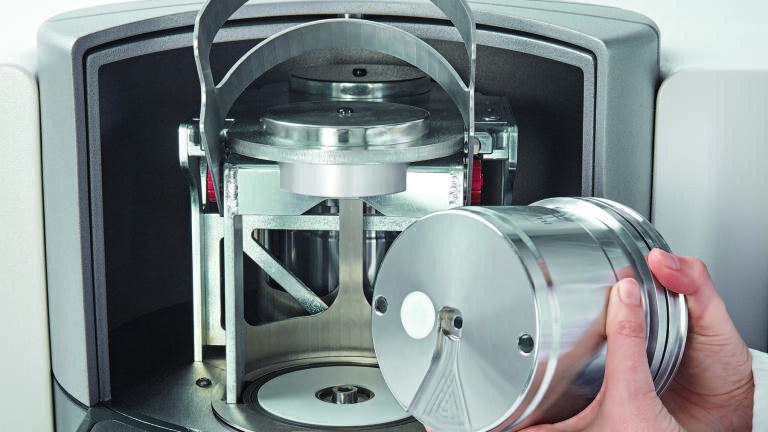

The grinding bowl is simply inserted in the PULVERISETTE 5 premium line from the front into the holder. Correct positioning is automatically ensured by a practical guide. The PULVERISETTE 5premium line does not start until both bowls are correctly inserted and prevents due to bowl detection via RFID chip, the setting of too high speeds depending on the bowl material used.

Your advantage: guaranteed constant, reliable results – incorrect operation impossible.

FRITSCH premium advantage: Motor-driven grinding bowl clamping

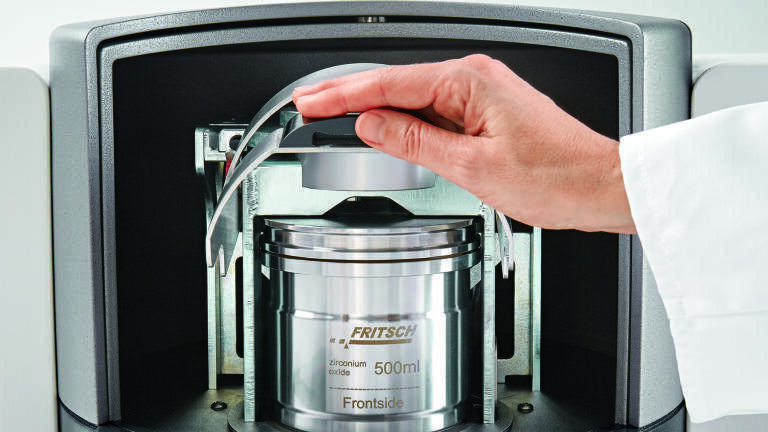

The revolutionary ServoLOCK is activated with a single hand motion by pressing down the clamp. It is automatically locked by the machine via ServoLOCK instead of manually. A LED light shows that the bowl is correctly inserted and clamped.

Your advantage: extremely safe and easy operation with reproducible, user-independent clamping at any time – without screwing or other manual fastening - incorrect operation impossible.

FRITSCH premium advantage: Intuitive user navigation

The PULVERISETTE 5 premium line is operated via the adjustable, ergonomically arranged touchscreen with high-resolution and logical menu structure in multiple languages and practical plain-text user navigation for fast and easy operation. Here you enter the variable rotational speed and define the grinding time. You can programme interval and pause times using the minutes and seconds timer and can save up to 10 programmes.

Convince yourself and experience the entire spectrum of FRITSCH – Milling and Sizing live during BCEIA CHINA 2017 • Booth 11021, 11023 and 11025 – Region A!

Test the FRITSCH Planetary Mill PULVERISETTE 5 premium line!

Send us your most difficult sample – we will carry out an individual sample grinding for you. Compare for yourself!

Please click here for up-dated information on the whole FRITSCH range for efficient sample preparation with videos.
