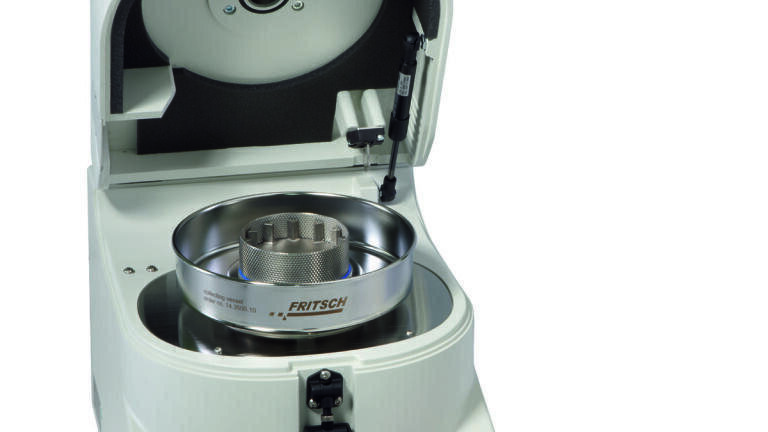

Variable Speed Rotor Mill – the all-purpose mill for rapid size reduction

The FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 grinds rapid and effectively soft to medium-hard, brittle as well as fibrous samples. Even the comminution of samples, which are difficult to grind or temperature-sensitive samples and plastics are no problem for the PULVERISETTE 14 due to its very efficient air cooling.

In addition to the special air cooling of the PULVERISETTE 14, we have developed the FRITSCH-impact blades: Due to its clever design it allows together with a sieve ring a very gentle grinding of the sample, which in many cases without impact blades would not be possible. The result: Increased grinding action for a particularly fast and effective grinding, the heat load is minimized. And the ideal solution for especially temperature-sensitive materials such as powder coatings or plastics, as well as for smoothly pre- and fine grinding of hard-brittle to soft, fatty sample or samples with a residual moisture!

Our suggestion: Samples that are extremely difficult to grind or which are extremely temperature-sensitive like styrene, polyester, synthetic resins, foils, PVC, PP and PE can be embrittled by adding liquid nitrogen and afterwards ground with the PULVERISETTE 14.

Even when heavy-metal-(iron-)free grinding or sample preparation according to standard for RoHS-analysis is necessary, the perfect accessories are available.

The Variable Speed Rotor Mill PULVERISETTE 14 with a real top speed of 20.000 rpm is the Turbo Mill for sample preparation. With a feed particle size of < 10 mm, a final fineness of up to 40 µm can be achieved. The throughput depends on the material and lies between 0.05 and 5 litres per hour. Rotors, sieve rings and collecting vessels made of different materials and in different sizes enable an optimal adjustment of the instrument to the application.

Highest rotational speed for finest grinding results in shortest times!

You may browse experience oriented examples as well as comparison grindings online by clicking on www.fritsch.de - Solutions.

FRITSCH Variable Speed Rotor Mill PULVERISETTE 14

• Rapid sample throughput as a result of high-speed grinding and simple cleaning

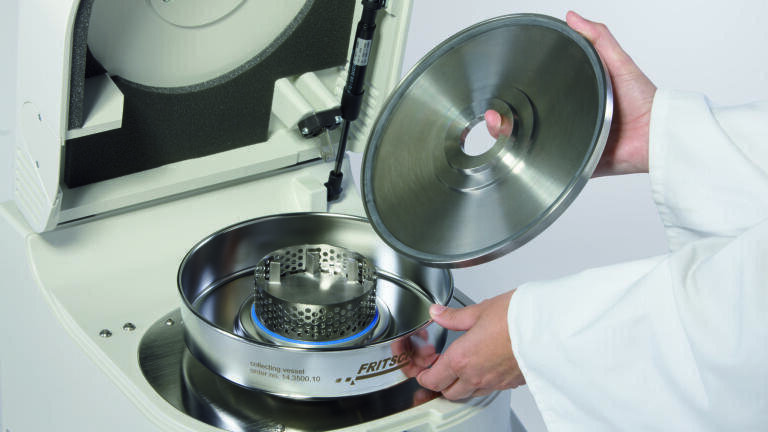

• Simple and easy change of all grinding parts without tools
• Simple, contamination-free cleaning and assembly of all grinding parts outside the instrument
• Variable speed adjustment from 6,000 to 20,000 rpm
• Automatic speed following system for constant grinding

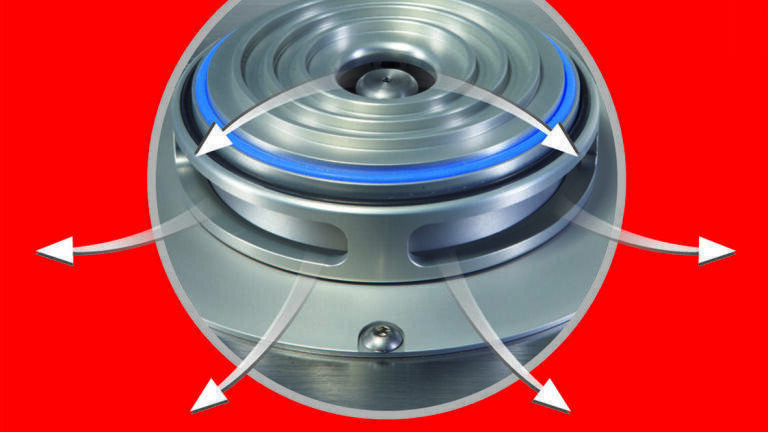

• Efficient air cooling of the rotor, all motor components and the grinding material due to a sophisticated routeing of the air flow
• Grinding parts made of stainless steel, pure titanium, TiN-coated and WC-coated
• Rapid-action clamping lock

By the way:

For the FRITSCH Variable Speed Rotor Mill, there is an extensive range of accessories available - configure your PULVERISETTE 14 for your specific application - our experts will gladly to advise you! Or

Test the FRITSCH Variable Speed Rotor Mill!

Send us your most difficult sample – we will carry out a complimentary sample grinding for you. Compare for yourself!
