Radwag – AS X7 Analytical Balance

Innovation of the Year
for a product or service

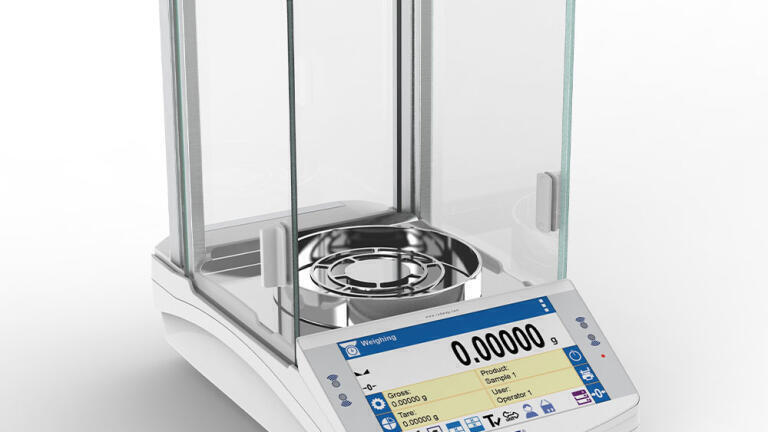

AS 82/220.X7 Analytical Balance

Maximum capacity [Max]: 82 / 220 g

Readability [d]: 0.01 / 0.1 mg

The AS 82/220.X7 Analytical Balance is a dual-range balance, which means that samples up to 82 g are weighed with readability of 0.01 mg, and samples from 82 to 220 g are weighed with readability of 0.1 mg.

AS 82/220.X7 Analytical Balances are characterized by very good repeatability, high readability and high resolution. These devices, used for weighing small masses, function as laboratory balances and are widely used in laboratories in fields such as pharmacy, physics, chemistry, biology, medicine and others.

Ergonomic Mechanical Design

The latest AS 82/220.X7 Analytical Balance features spacious weighing chamber, and the open-door clearance facilitates easy access to the weighing pan. With this it is possible to use laboratory glassware of various sizes. New aluminium base is a guarantee for weighing system stability.

Dual-CLICK system allows tool-free assembly and disassembly of the weighing chamber, and a special design of guides for weighing chamber panes (no rims) makes keeping the device clean convenient.

Innovative construction solutions increase balance durability and reliability in long-term operation.

Colour Touch Screen

The latest generation 7’’ compact display allows comfortable operation even with lab gloves. The AS 82/220.X7 Analytical Balances guarantee intuitive communication thanks to a wide selection of widgets that can be freely configured according to user needs.

Personalization provides access to necessary information and work results directly from the main display panel. The user can fully configure sets of buttons and link them to a specific operation mode, and define information and text fields.

LevelSENSING System

The in-built sensors measure tilt, and display graphic message on the weighing device screen. In accordance with GLP and GMP, the LevelSENSING system simplifies the adjustment, ensures an ongoing control of the level and informs about deviations.

Internal Adjustment

Modernized internal adjustment system guarantees accurate indications in extremely unfavourable conditions.

SMARTLab

AS 82/220.X7 Analytical Balances are equipped with a SMARTLab system of an extensive functionality. It ensures support and supervision over the mass measurement process and reduces hazard of error caused by so called „human factor”.

Databases

Information system of the AS 82/220.X7 balances is based on 9 databases that enable operation of many users with numerous products, all the stored data can be subjected to analysis.

Weighing data is recorded in 9 databases:

• Products (5 000 products)
• Users (100 users)
• Packaging (100 packaging types)
• Customers (1 000 customers)
• Formulations (100 formulations)
• Formulations reports (500 reports)
• Ambient Conditions (10 000 records)
• Weighings (50 000 records)
• ALIBI memory (512 000 records).

Communication Interfaces

The functionality of AS 82/220.X7 balances can be expanded using the following communication interfaces: 2×RS232, 2×USB-A, USB-B, Ethernet, Wi-Fi®. The additional USB port located on the front of the balance enables easy and fast communication with the USB flash drive, it is possible to  connect additional devices via this port too.

Wi-Fi® is a registered trademark of Wi-Fi Alliance®.

AS 82/220.X7 Analytical Balances are equipped with Kensington Lock, which allows to secure the device against theft.

Additional option:

Under-pan weighing

THBR 2.0 System for ambient conditions monitoring.
