ELLIPSIS - Multipurpose Balances for Various Applications

Oct 03 2022

ELLIPSIS is the latest series of laboratory balances by RADWAG. All devices in this line are based on the 5Y terminal, to which they owe such cutting-edge features as:

  • 10-inch display with widgets
  • Digital Weighing Auditor (DWA)
  • Uncompromised user verification
  • Live Note voice and text notes
  • Voice commands for the device
  • Handy Library
  • Widgets
  • Ambient Light

10-Inch Display with Handy Library & Widgets

The greatest ergonomics of working on the ELLIPSIS balance is provided by the display: large, colour, touchscreen. To allow the user to customise the display, two mods have been created to choose from: light and dark.

Quick access to commands, always visible necessary statuses, the latest measurements within the Handy Library, and widgets - this is also what can be found here.

Digital Weighing Auditor (DWA) with Ambient Light

DWA is a system that monitors ambient conditions (temperature, humidity, pressure, and vibration), balance levelling, adjustment, USP compliance, and ioniser operation. ELLIPSIS signals the results of the digital audit via Ambient Light, pictograms on the home screen, or a speaker.

The Digital Weighing Auditor ensures that the balance is ready for work.

Uncompromised User Verification

There are four ways to log in to the ELLIPSIS balance. Complete verification of the user is possible by entering a password, bringing the RFID chip (in a token or a card) near the reader, or with a fingerprint. Applying the finger is also the second stage of two-step verification, which follows the initial identification of the user with the 8 MP camera (face recognition).

Live Note Voice and Text Notes & Voice Commands for the Device

One of ELLIPSIS’ innovative features is the ability to add a voice or text note to a series of measurements or a procedure report. The user can take notes or record the conclusions so that they are not forgotten.

The operator can also issue voice commands to the ELLIPSIS, such as opening the weighing chamber or levelling.

The ELLIPSIS series includes ultra-microbalances, microbalances, analytical balances, and precision balances.

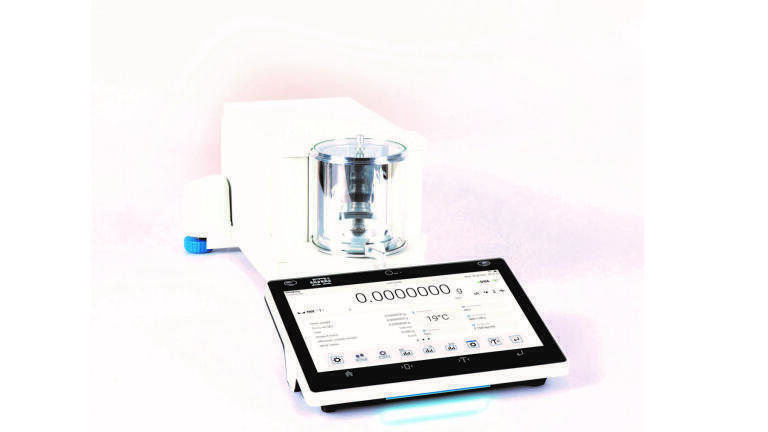

UYA 5Y Ultra-Microbalance

  • The world’s lowest reading unit [d] 0.1 μg
  • Weighing range up to [Max] 6.1 g
  • The lowest minimum weight [USP] 0.3 mg
  • Automatic, draft-proof weighing chamber
  • Fully automatic levelling system
  • Wide variety of applications

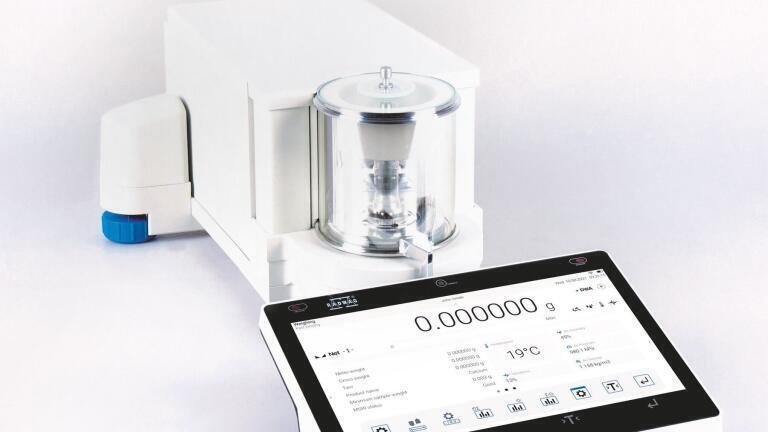

MYA 5Y Microbalance

  • The world’s lowest reading unit [d] 1 μg
  • Weighing range up to [Max] 52 g
  • The lowest minimum weight [USP] 0.82 mg
  • Automatic, draft-proof weighing chamber
  • Fully automatic levelling system
  • Wide variety of applications

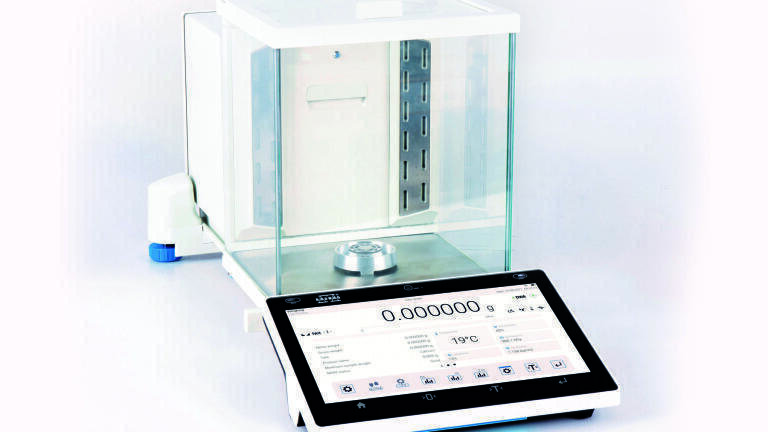

XA 5Y.M.A Microbalance

  • Reading unit [d] 0.01 mg
  • Weighing range up to [Max] 53 g
  • Spacious weighing chamber: 199 x 157 x 218 mm
  • Large weighing pan: ø 30 mm
  • Tool-free disassembly of the chamber

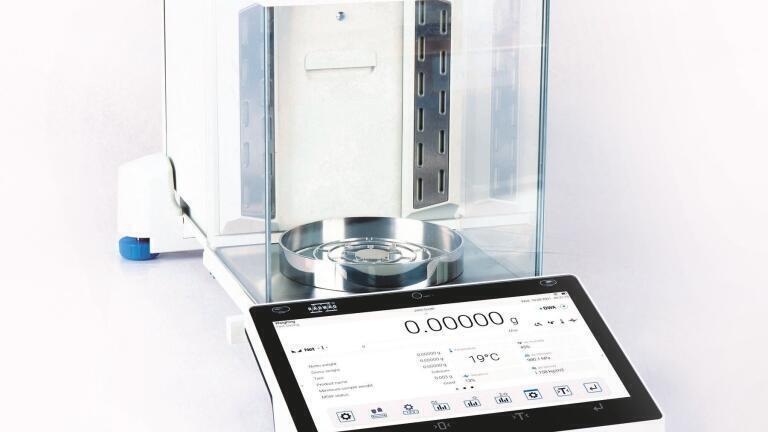

XA 5Y.A Analytical Balance

  • Reading unit [d] 0.01 mg
  • Minimum weight: 10 mg
  • Conditioning shelf
  • Open-work weighing pan
  • Tool-free disassembly of the chamber
  • Integrated antistatic ioniser
  • Automatic levelling
  • Automatically opened weighing chamber
