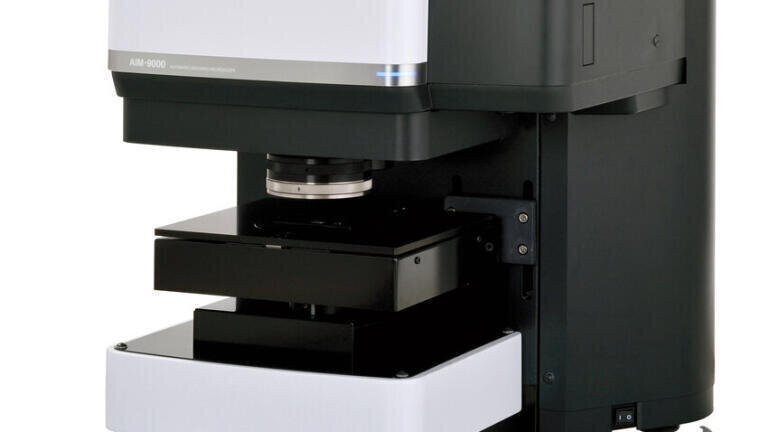

AIM-9000 Infrared Microscope System
Jun 01 2016
Shimadzu has released the AIM-9000 Infrared Microscope System. This automatic failure analysis system delivers a unique concept in the field of micro sample analysis. It offers automation of all necessary steps involved in failure analysis and micro sample evaluation; observation, definition of measurement spots, measurement as well as identification.
With the AIM-9000, Shimadzu provides an analysis systems for all users, so micro analysis can be performed quickly and easily. The new system targets industries such as electricals and electronics, machinery and transportation, pharmaceuticals and life sciences, petroleum and chemicals.
AIM-9000 Infrared Microscope System - the main features
Shimadzu’s accumulated know-how in micro analysis is concentrated in the AIM-9000 to strongly support analysts. Its functionality is simpler and more convenient to use.
The main features to realize automation are:
Wide Field Camera makes automatic zoom-in from Eye-size (10 x 13 mm) to contaminant-size (300 x 400 μm)
- Definition of measurement spots, measurement
Automatic Contaminant Recognition sets aperture on measurement spots automatically.
Measurement of these spots is performed automatically.
Contaminant Analysis Program identifies the spectrum automatically.
AIMsolution can search with LabSolutions IR library with approx. 12,000 spectra, Tap-water contaminants library, Thermal-damaged plastic library, Sadtler libraries and STJ libraries.
Furthermore, the AIM-9000 utilizes high-speed mapping measurement with imaging presentation. It is possible to observe visually and measure simultaneously.
Software and compatibility
The AIM-9000 is controlled by the AIMsolution software which unifies all operations for sample observation, measurement and analysis. A wide range of accessories complements the instrument, such as objectives, polarizers, a pressure sensor and a TGS detector. The AIM-9000 will be compatible with Shimadzu’s IRAffinity-1S and IRTracer-100 FTIR spectrometers. In combination with the IRTracer-100 platform, the AIM-9000 can reach a S/N ratio of a staggering 30.000/1 (Transmission, MCT detector, 50 µm aperture, 8 cm-1 resolution, 2min. scan).
For more information please visit: shimadzu.eu
