Touch Screen Control Platform for easy Automation of Research and Light Industrial Motion Control Systems

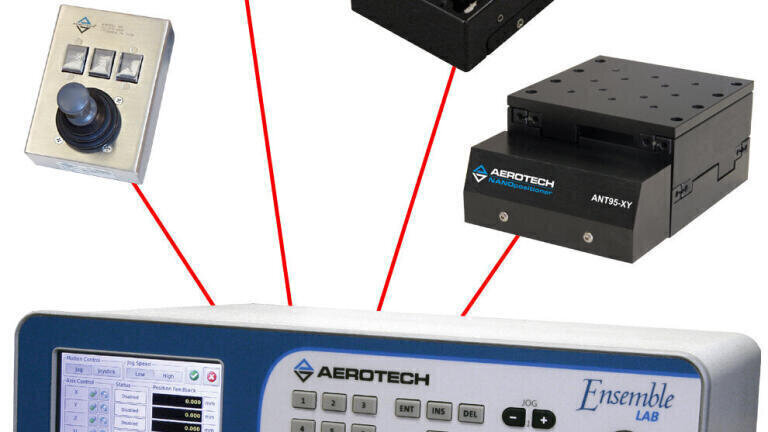

Aerotech has introduced a touch-screen control platform for easy automation of laboratory and light industrial motion control systems. The new Ensemble LAB controls up to four axes of brush, stepper or brushless AC motors.

It is designed for university research and manufacturing applications where ease of use is desired. The full-colour touch-screen display enables quick access to all the core functionality while providing deep contrast and high readability. The intuitive tabbed interface provides single press access to all setup and operation screens. A front-panel USB port allows connection of a keyboard and other peripherals to assist in creating complex program sequences.

The Ensemble LAB includes full compatibility with both EPICS and TANGO distributed control protocols, allowing it to seamlessly integrate into applications at all major research institutions.

Aerotech’s MPS series stages support the Ensemble LAB’s FlashConfig feature. The stage is automatically identified and all operational parameters including axis calibration data are uploaded into the Ensemble LAB. This ensures safe, accurate ‘plug-and-play’ operation. FlashConfig provides maximum flexibility for laboratory environments where systems are often reconfigured to meet changing application requirements.

Ensemble LAB can run up to four programs simultaneously for easy partitioning of complex operations. The platform controls a variety of applications including point-to-point motion, linear and circular interpolation, single- and multi-axis error correction, direct commutation of linear and rotary brushless servomotors, and servo autotuning.

Aerotech is a leading global supplier of positioning and motion control products for industry, government, science and research institutions. Its products provide critical performance for demanding applications requiring high precision, high-throughput motion control solutions.
