Valveless Micro-Volume Fluid Control for Catheter Manufacturing and Assembly

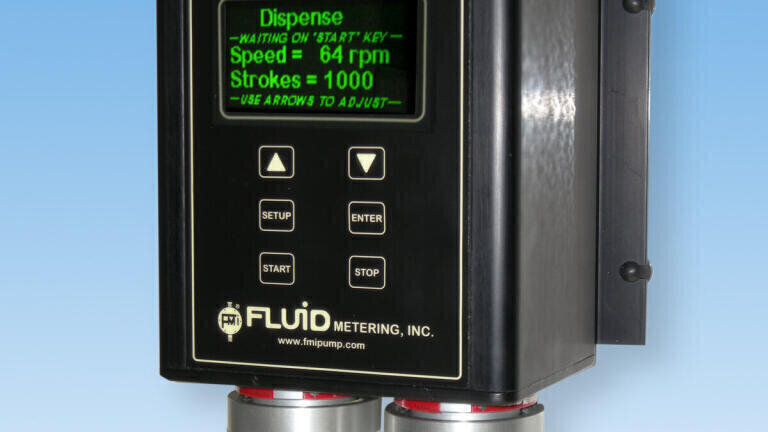

The PDS-100 is a programmable fluid metering and dispensing system which integrates Fluid Metering’s patented CeramPump® valveless pump technology with precision, programmable drive motor control.

The pump head internals are made from chemically resistant, sapphire-hard ceramics, ideal for dispensing a broad range of fluids. Saline, silicone lubricant, isopropyl alcohol and antibacterial agents, as well as UV curable adhesives, cyclohexanone solvent, and 2-part epoxies are fluids typically utilised in catheter assembly and easily handled by the PDS-100.

The PDS-100 is available in both single and dual pump head configurations. For duplex configurations, the displacement and speed of each pump head can be individually controlled, ideal for proportional mixing and diluting. Duplex configurations can also provide economic 2-channel dispensing, effectively doubling production capacity at a fraction of the cost of using two individual dispensers.

In both single and dual channel configurations, pump heads are integrally mounted to the control unit which includes precision stepper motors and controls, housed in a rugged, anodised aluminum enclosure ideal for production environments.

The PDS-100 utilises Fluid Metering’s patented CeramPump® pumping principle. One moving part, a rotating and reciprocating ceramic piston, accomplishes all fluid control functions in the pump, thereby eliminating check valves and their associated failure and maintenance issues. The PDS-100 can dispense from 3uL per dispense up to 2 L/min continuous flow at 1% precision or better.
