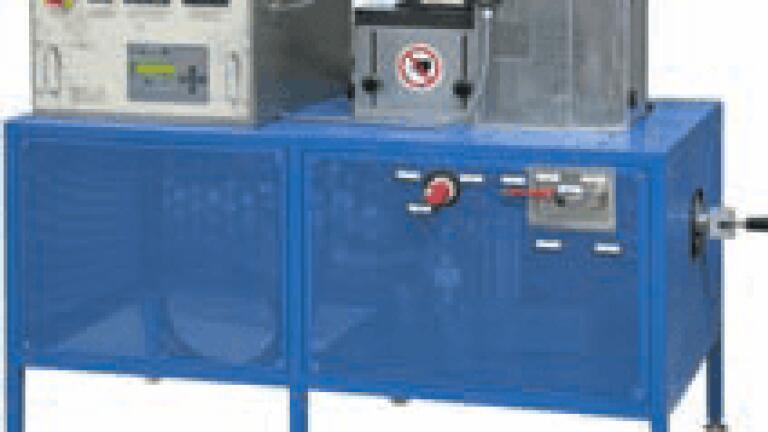

Induction Heated Crucible Furnace With Vacuum and Protective Gas

High frequency crucible furnace with vacuum for induction melting of metals and metal alloys, for heat treatment and

for sintering of oxide ceramics and powder metals is available from Linn High Therm GmbH.

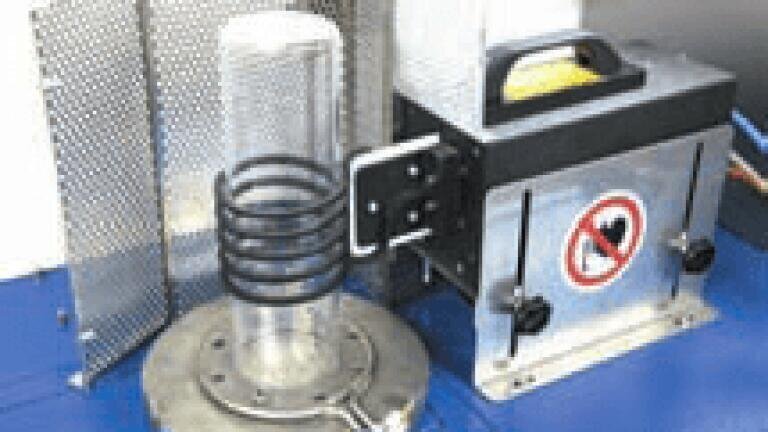

Operation with or without the vacuum is possible. It is possible to use different coils for the application, which are

individually height-adjustable, to ensure a high flexibility for the application processes.

Control unit for automatically control of heat power, gas flow and to regulate the temperature.

Features include: temperature of approximately 2300°C (depending on susceptors and isolation); effective chamber volume - quartz glass with an inner diameter of 84mm x 300 heated length; a maximum inductive power of approximately 6kW; atmosphere of nitrogen and argon; and a 2x10-5 mbar vacuum.
