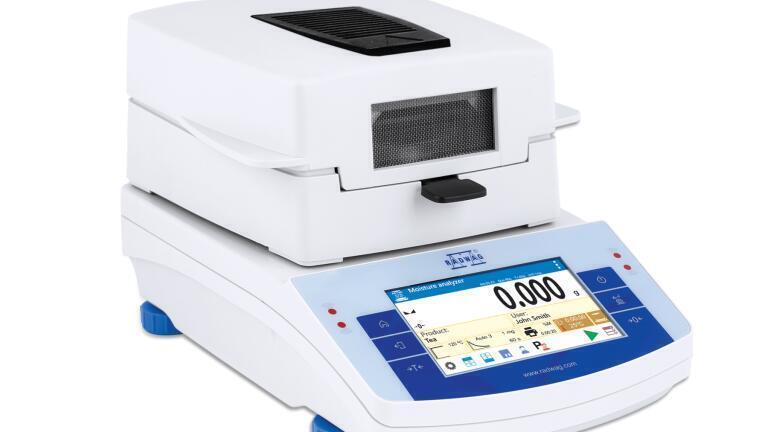

MA X2 Moisture Analysers – Advanced Moisture Content Analysis

Fast and accurate measurements guarantee

Quick analysis of dry mass and moisture content

Automatically opening and closing drying chamber*

* refers to moisture analysers MA X2.A

Results in repeatability for a series of drying processes

Easy and intuitive operation

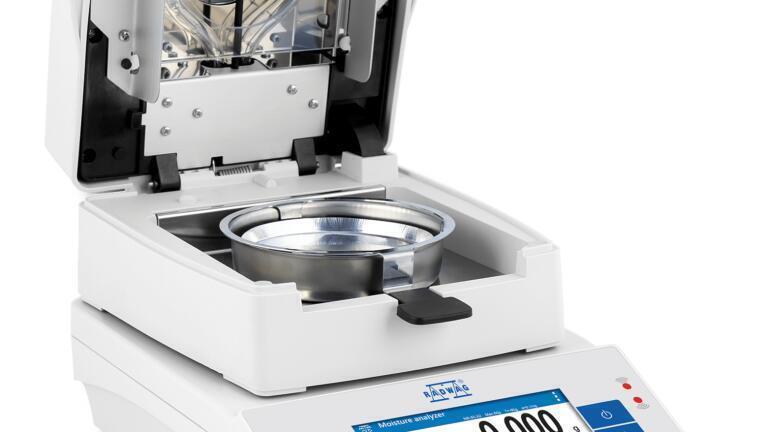

Automatically opening and closing drying chamber

An innovative system of opening and closing of the drying chamber in the moisture analyser MA X2.A, thanks to its contactless operation, ensures the device is kept clean. The chamber always closes with the same intensity, which positively influences the measurements quality and repeatability. Automatic chamber opening and closing prevents direct contact of the operator with the heating element.

The precision of mass measurement and optimisation of drying process

The special algorithm controlling heating elements operation facilitates maintaining proper drying temperature and ensures fast and precise measurement. Dynamic temperature control method allows the user to carry out analysis within a relatively short time and to obtain repeatability in the series of drying processes. The MA X2 and MA X2.A models, equipped with various heating elements, allows testing moisture content of different samples, i.e. samples characterised with various structures and textures. Diverse drying profiles make use of individual methods for obtaining the preset temperature possible.

Database as Drying Processes Backup

The possibility of saving all the information and drying processes in the database improves drying processes management. Taking advantage of this option the user does not have to remember a particular parameter’s values.

Maximum capacity [Max] 50 g - 210 g

Readability [d] 0.1 mg - 1 mg

Display 5” colour touch screen

Moisture readout accuracy 0.0001 % - 0.001 %

Drying temperature range max 160°C, max 250°C (option)

Weighing pan dimensions ø90 mm, h = 8 mm

Heating module IR emitter, halogen (option)

Automatically opened drying chamber

Communication interfaces RS 232, USB-A, USB-B,

Wireless Module
