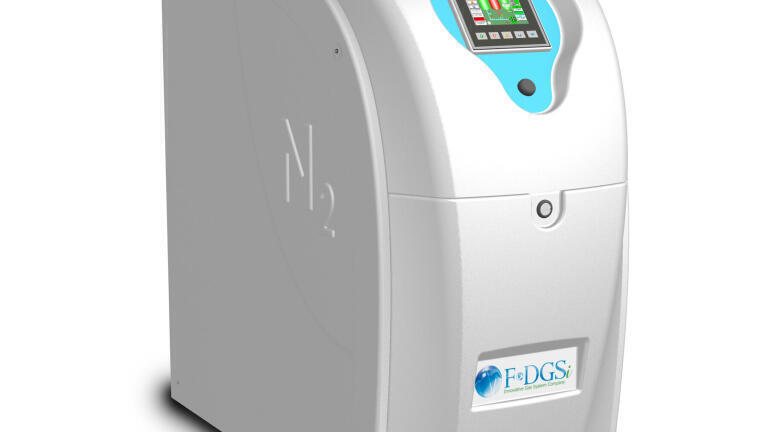

N2 generators for LCMS, MP-AES, GC and general applications

F-DGS I has taken huge steps to improve the functionality of its N₂ generators. We have re-designed its core range of N₂ gas generators and implement a series of unique features and end user benefits, making our N₂ range, the most complete one and the best in the market.

Our Nitrogen gas generators are quieter, more efficient, technically advanced in terms of safeguards and offer the user more functionality in control than anything else on the market.

For LCMS applications, we can also offer both PSA and Membrane technology depending on the application and end user preference. The flow rate range allows single or multiple instruments to be supplied.

Our PSA MAESTRO LCMS series exists in 6 models with the option with or without built in air compressor:

- MAESTRO-35 LCMS series: with max. Output of 35 L/min of N2 gas

- MAESTRO-64 LCMS series: with max. Output of 64 L/min of N2 gas

- MAESTRO- DF LCMS series: The dual flow, specifically designed for the Agilent 6400 & 6500: to meet the drying, sheath, nebulisation and collision gas requirements. The generator provides two continuous streams of nitrogen from a single ‘plug & play’ unit.

- MAESTRO-25 LCMS series: with max. output of 25 L/min of N₂ gas

- MAESTRO-15 LCMS series: with max. output of 15 L/min of N₂ gas

- MAESTRO- TF LCMS series: the triple flow, specifically designed to supply Curtain, Source & Exhaust gases with dry air and nitrogen for AB Sciex LCMS instruments.

The THYSTER MP-AES dual flow generator has been specifically designed to meet the nitrogen and dry air needs to supply a Microwave Plasma Atomic Emission Spectrometer (MP-AES) of the Agilent range. It is complete plug and Play system.

CONFIGURATION FOR ORGANICS ANALYSIS

N₂: 25 L/min at 65 psi, purity > 99.7%

Air: 36.5 L/min at 87 psi separate in 3 ways for POP, EGCM and monochromatic gas

CONFIGURATION FOR DETERMINATION OF SULPHUR

N₂: 25 L/min at 65 psi, purity > 99.7%

Air: 36.5 L/min at 87 psi separate in 2 ways for POP and EGCM optic purge

N₂: 10L/min @99.95% at 65 psi to supply monochromatic gas

For GC application and general application, we employ PSA technology to deliver best in class life expectancy. An integrated oil-free compressor is optional, but all generators provide N₂ at purities ranging from 98% to 99.9995%. Zero Nitrogen and Combine N₂/AIR generators are available for more specific GC applications.
