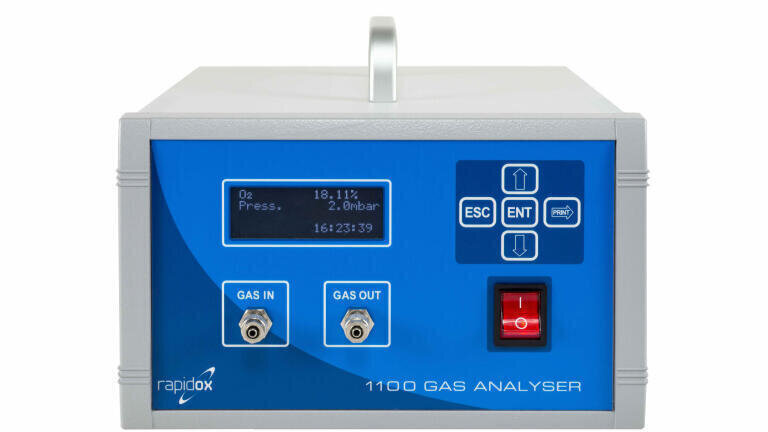

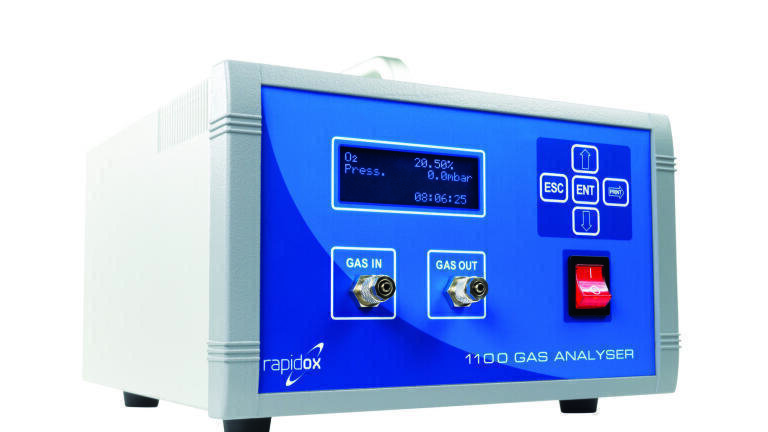

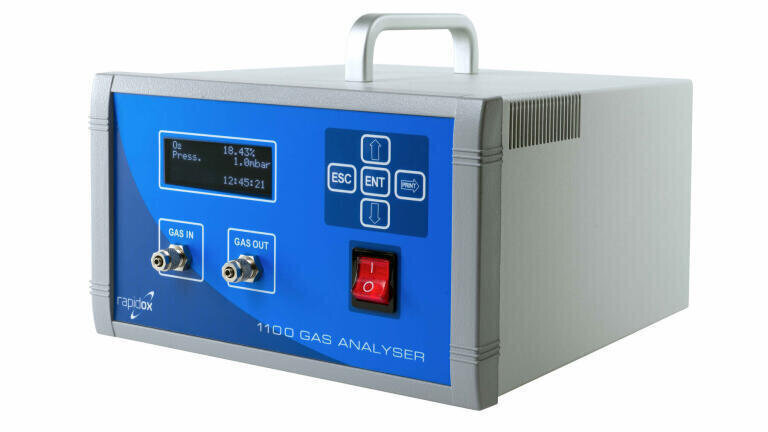

Introducing the new Rapidox 1100Z

Nov 07 2018 Read 244 Times

Cambridge Sensotec’s flagship Rapidox 1100Z oxygen gas analyser is being relaunched in November 2018 with a new look, new features and fully upgraded software. First developed nearly ten years ago, the Rapidox 1100Z oxygen gas analyser continues to be the company’s best-selling and most versatile oxygen instrument, due to its speed and accuracy of measurement, ease of use, calibration and ultra-long life sample pump.

The Rapidox 1100Z gas analyser range includes a choice of oxygen sensors designed for measuring ppm levels to 100% gas, within inert atmospheres or gases containing VOC’s (volatile organic compounds), suiting a wide range of applications. For example; gloveboxes, welding, monitoring inert atmospheres within solder reflow ovens, additive manufacturing, medical and food packaging testing applications and metal heat treatment amongst others.

The updated Rapidox 100Z oxygen gas analyser has a new OLED screen which now delivers improved visibility from every angle, with four lines of information displayed. The Rapidox 1100Z is easy to identify in laboratories, manufacturing plants or test facilities due to its new, dynamic blue fascia design. Additionally, for low ppm oxygen gas measurements, the Rapidox 1100Z zirconia models now include an updated, superior zirconia planar sensor, providing faster and more accurate trace oxygen measurements.

With the use of an Ethernet adaptor, the new Rapidox 1100Z can be connected directly to a network and accessed remotely via a PC in the same network or over the internet. The updated Rapidox software allows the user to turn their PC into a giant remote Rapidox display emulator. This is particularly useful for applications where the analyser is based in a remote laboratory and needs to be monitored from another part of the building or anywhere with an internet connection.

Modbus RTU is now installed as a standard communications protocol; ideal for when used in conjunction with a PLC or other external control systems. Other new features include an enhanced calibration allowing up to five separate test gases to be used instead of the standard three. The calibration quality can also be gauged by the incorporation of a live R-squared function. Individual calibration data, together with other critical parameters such as ambient conditions, historical alarm events, machine run time are now stored and displayed in a new system info menu. The alarm relays now have a latching option to fall in line with standard equipment features. The password system has been updated and the screen display can now be configured to include balance gas values as well as the standard oxygen and pressure readings.

The Rapidox 1100 range is available with many sensor variations including a choice of two electrochemical oxygen sensors, one for low ppm measurements of 1ppm to 1% and another for 1-100% oxygen range. Electrochemical sensors are ideal for applications where VOC’s or flammable gases are present in the gas sample. Other special variations for measuring CO2, CO, H2, He and Ne and Xe using Infra Red (IR) and thermal conductivity (TCD) technology are available.
